Features & Benefits

Suitable for indoor & outdoor applications
Manufactured high pressure diecast Aluminium (LM20)
Excellent axial and lateral load retention
Stackable single bolt fixing design
Tested & certified to BS EN61914:2016 Cable Cleats for Electrical Installations
Short Circuit Tested to 90kA Peak / 42.8kA rms (0.1sec 600mm fixed cleat centres and 105mm cable centres in parallel formation)
Temperature Range -60 C to 150 C

Single cable cleats

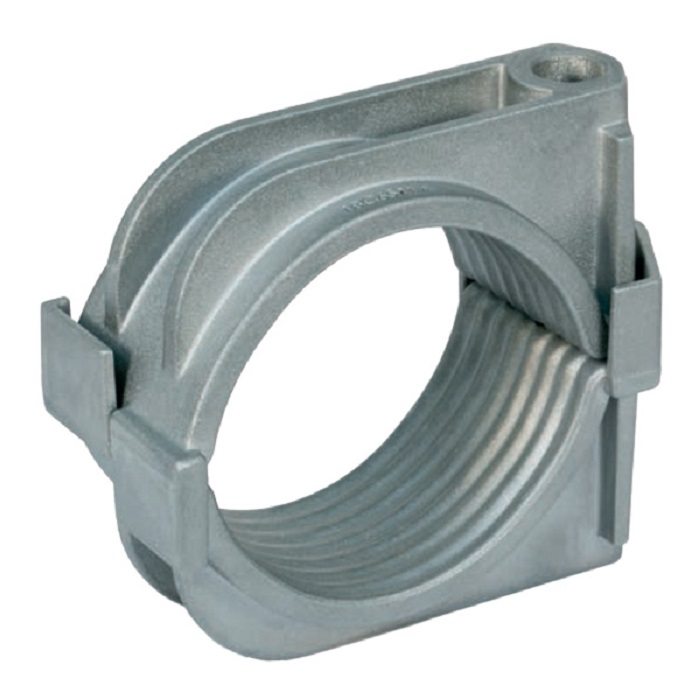

1 Bolt Single Aluminium Cable Cleats - Valiant

Standard range of Aluminium 1 bolt cable cleats suitable for single core and multi core cables in commercial and industrial application on cable systems with medium short circuit forces.

Part No	Cable Dia Range mm	Fixing Holes
1BC1013A	10-13	1 x M10
1BC1316A	13-16	1 x M10
1BC1619A	16-19	1 x M10
1BC1923A	19-23	1 x M10
1BC2327A	23-27	1 x M10
1BC2732A	27-32	1 x M10
1BC3238A	32-38	1 x M10
1BC3845A	38-45	1 x M10
1BC3846A	38-46	1 x M10
