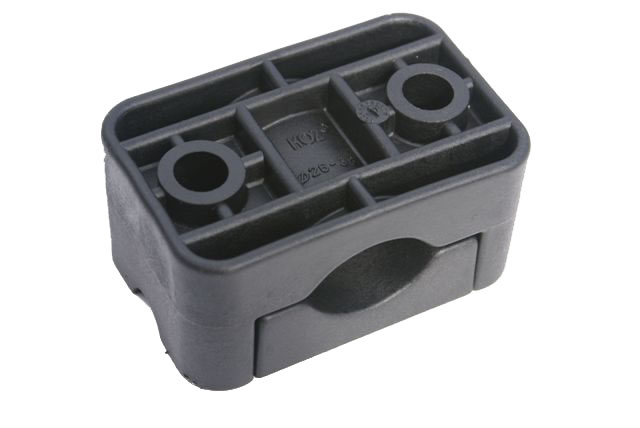

2 Bolt Composite Cable Cleats

Features & Benefits

Suitable for indoor and outdoor applications
Manufactured from fibreglass reinforced polyamide
Stackable two bolt fixing design
UV, weather resistant & flame Resistant to UL94-VO
Temperature Range –80 C to +120 C
Tested & certified to IEC 61914:2016 Cable Cleats for Electrical Installations
Mechanical Strength 25,400N - 48,000N
Conforms to EU 2011/65 EU (RoHS) & Reach directives

Single cable cleats

2 Bolt Composite Cable Cleats - ST Series

Premium range of 2 bolt Composite cable cleats suitable for single core cables in light industrial applications on cables systems with medium to high short circuit forces installed in single or flat formation.

Part No	Cable Dia Range mm	Fixing Holes
500013	16-26	2 x M10
500022	26-38	2 x M12
500023	36-52	2 x M12
500024	50-75	2 x M12
500025	75-100	2 x M14
