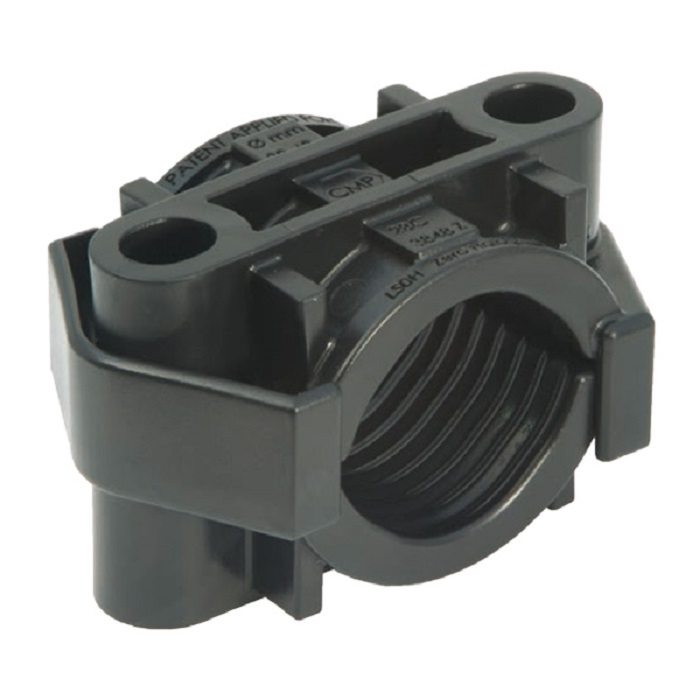

2 Bolt Single Nylon Cable Cleats

Features & Benefits

Suitable for indoor applications
Excellent axial and lateral load retention
Stackable two bolt fixing design
UV (Sunlight) & weather resistant
The cable cleat has 2 x M12 clearance holes so can be fixed with 2 x M10 or M12 fasteners
Tested & certified to BS EN61914:2016 Cable Cleats for Electrical Installations
Short Circuit Tested to 110kA Peak / 50.0kA rms (0.1sec 600mm fixed cleat centres and 105mm cable centres in parallel formation)
Temperature Range -40 C to 60 C
Available in UL94 V0 Nylon & LUL approved polymer

Single cable cleats

2 Bolt Single Nylon Cable Cleats - Falcon

Standard range of Nylon 2 bolt cable cleats suitable for single core and multi core cables in commercial and light industrial applications on cable systems with low short circuit forces.

Part No	Cable Dia Range mm	Fixing Holes
2BC038048	38-48	2 x M10/M12
2BC048058	48-58	2 x M10/M12
2BC058070	58-70	2 x M10/M12
2BC070083	70-83	2 x M10/M12
2BC083097	83-97	2 x M10/M12
2BC096109	96-109	2 x M10/M12
2BC106120	106-120	2 x M10/M12
