Heavy Duty Composite Cable Cleats

Features & Benefits

Suitable for indoor and outdoor applications
Manufactured from fibreglass reinforced polyamide
Stackable two bolt fixing design
UV, weather resistant & flame resistant to UL94-VO
Temperature Range -80C to +120C
Tested & certified to IEC 61914:2016 Cable Cleats for Electrical Installations
Mechanical Strength 40,000N to 65,000N
Conforms to EU 2011/65 EU (RoHS) & Reach directives

Trefoil cable cleats

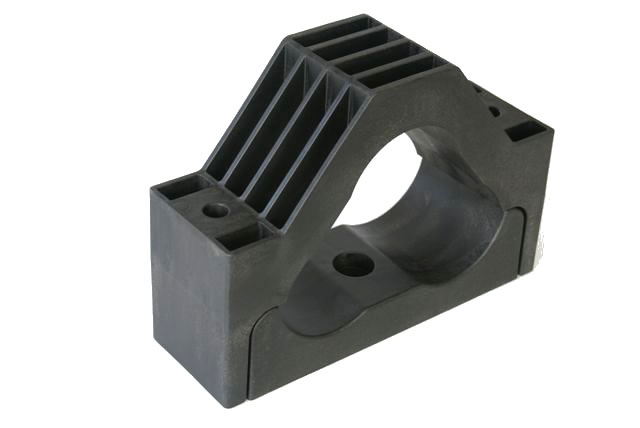

Heavy Duty Composite Cable Cleats – TRI Series

Premium range of 2 bolt Composite cable cleats suitable for single core cables in heavy industrial applications on cables systems with medium to high short circuit forces installed in trefoil formation.

Part No	Cable Dia Range mm	Fixing Holes
500008	25-40	2 x M14
500007	38-53	2 x M14
500006	53-66	2 x M14
500005	67-82	2 x M16
500004	82-98	2 x M16
500027	99-120	2 x M18
500028	121-145	2 x M18
