Stainless Steel Cable Cleats

Features & Benefits

Suitable for indoor and outdoor applications
Manufactured from 316L stainless steel with LSF liners
Excellent corrosion resistance in the harshest environments
Temperature Range -50 C to 60 C
Tested & certified to BS EN61914:2016 Cable Cleats for Electrical Installations
Short Circuit Tested to 110kA Peak / 50kA rms (0.1sec 600mm fixed cleat centres and 105mm cable centres in parallel formation)
3 fixing holes ensuring product can be installed to most mounting surfaces

Single cable cleats

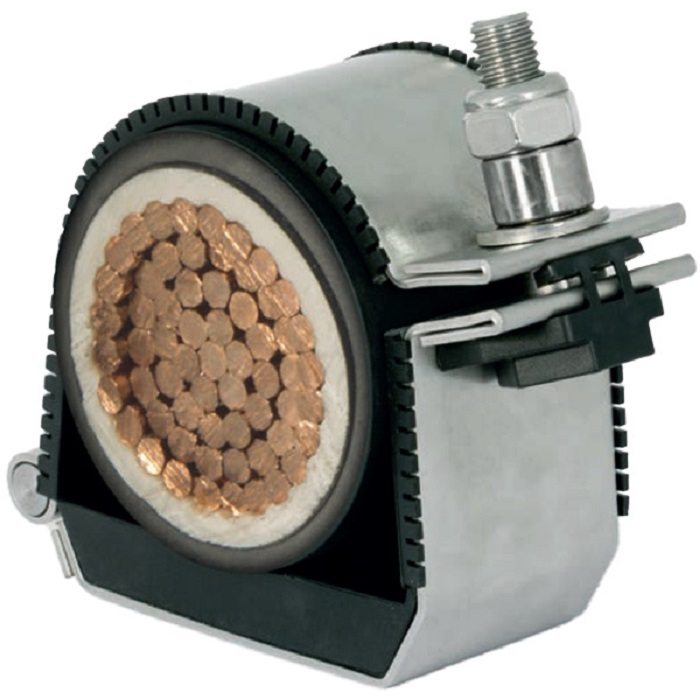

Stainless Steel Cable Cleats - Sapphire

Premium range of stainless steel cable cleats suitable for single core cables in commercial and heavy industrial applications on cables systems with medium short circuit forces installed in single or flat formation.

Part No	Cable Dia Range mm	Fixing Holes
SHDSS032038	32-38	1 x M12 or 2 x M10
SHDSS038046	38-46	1 x M12 or 2 x M10
SHDSS046051	46-51	1 x M12 or 2 x M10
SHDSS051058	51-58	1 x M12 or 2 x M10
SHDSS058070	58-70	1 x M12 or 2 x M10
SHDSS070083	70-83	1 x M12 or 2 x M10
SHDSS083097	83-97	1 x M12 or 2 x M10
SHDSS096109	96-109	1 x M12 or 2 x M10
SHDSS106120	106-120	1 x M12 or 2 x M10
SHDSS120135	120-135	1 x M12 or 2 x M10
