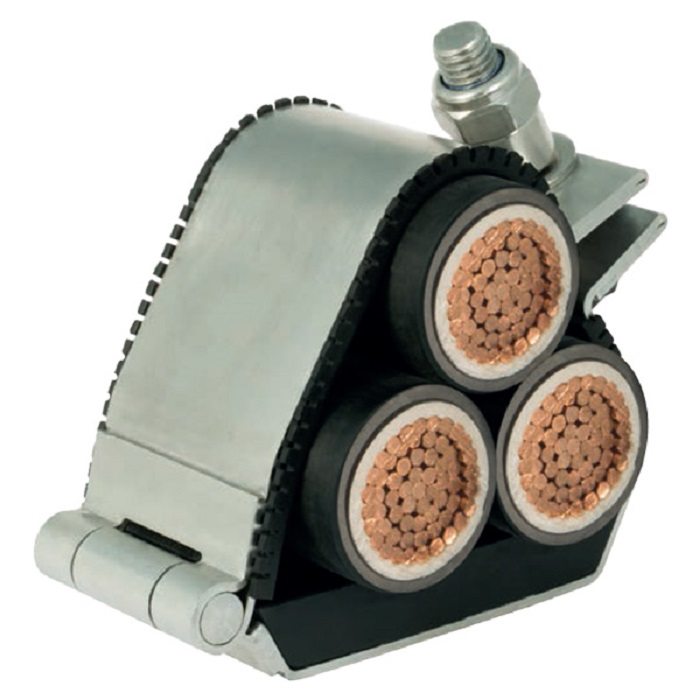

Heavy Duty Stainless Steel Cable Cleats

Features & Benefits

Suitable for indoor and outdoor applications
Manufactured from 316L stainless steel with LSF liners
Excellent corrosion resistance in the harshest environments
Quick Installation with 1 fixing bolt to secure the 3 cables in place in trefoil formation
Can be used with Triplex Cable Surround to accommodate the twisting of a Triplex cable
Can be used in conjunction with intermediate cable restraints
Tested & certified to BS EN61914:2016 Cable Cleats for Electrical Installations
Short Circuit Tested to 190kA Peak / 87.7kA rms at 300mm 150kA Peak / 68.2kA rms at 600mm (0.1sec at 300mm & 600mm fixed cleat centres in trefoil formation)
Temperature Range -50 C to 60 C
3 fixing holes ensuring product can be installed to most mounting surfaces

Trefoil cable cleats

Heavy Duty Stainless Steel Cable Cleats - Sovereign

Premium range of stainless steel cable cleats suitable for single core cables in commercial and heavy industrial applications on cables systems with medium to high short circuit forces installed in trefoil formation.

Part No	Cable Dia Range mm	Fixing Holes
HDSS019023	19-23	1 x M10 or 2 x M10
HDSS023028	23-28	1 x M10 or 2 x M10
HDSS027032	27-32	1 x M10 or 2 x M10
HDSS030035	30-35	1 x M10 or 2 x M10
HDSS033038	33-38	1 x M10 or 2 x M10
HDSS036042	36-42	1 x M10 or 2 x M10
HDSS040046	40-46	1 x M10 or 2 x M10
HDSS044050	44-50	1 x M10 or 2 x M10
HDSS048055	48-55	1 x M10 or 2 x M10
HDSS055062	55-62	1 x M10 or 2 x M10
HDSS059066	59-66	1 x M10 or 2 x M10
HDSS063070	63-70	1 x M10 or 2 x M10
HDSS067074	67-74	1 x M10 or 2 x M10
HDSS071078	71-78	1 x M10 or 2 x M10
HDSS074082	74-82	1 x M10 or 2 x M10
HDSS077085	77-85	1 x M10 or 2 x M10
HDSS082088	82-88	1 x M10 or 2 x M10
HDSS088096	88-96	1 x M10 or 2 x M10
HDSS096103	96-103	1 x M10 or 2 x M10
HDSS0103111	103-111	1 x M10 or 2 x M10
HDSS111119	111-119	1 x M10 or 2 x M10
HDSS0119128	119-128	1 x M10 or 2 x M10
