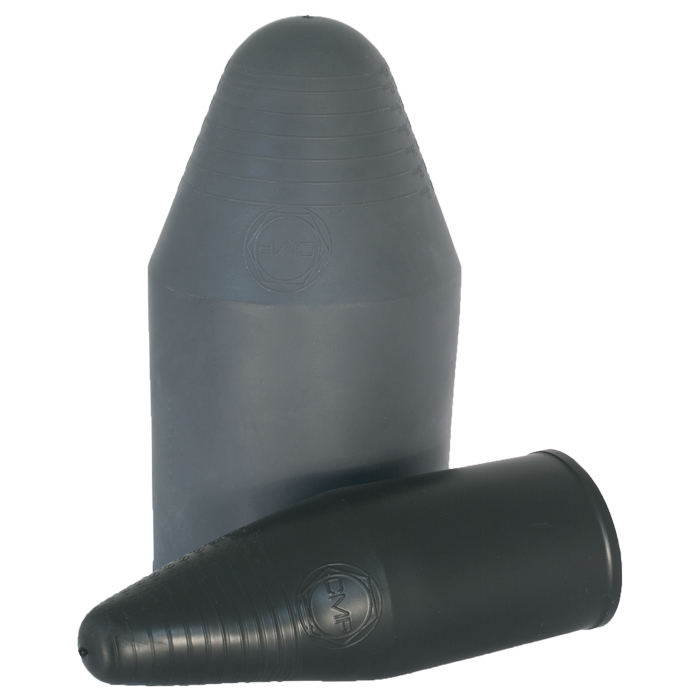

Cable Gland Shrouds

Features & Benefits

Available as additional parts as shrouds are supplied as standard as part of CMP cable gland kits or for colour coding
PVC temperature range -60C to to +90C
Supplied in PVC as standard but also available in LSF & PCP
Supplied in Black as standard but also available in Grey, Blue, Red, Orange, Green & Yellow
Other sizes available on request
Please quote part no CGSH** and the reference number from the size chart below based on the cable gland type when contacting the sales office

Cable glands accessories

Cable Gland Shrouds

A range of cable gland shrouds that are designed to minimise the risk of dirt or foreign substances gathering on the cable gland and point of cable to cable gland interface.

Size	A2	BW	CW/CX	E1W
20S	04	02	04	04
20	05	05	06	06
25	09	07	09	09
32	10	10	11	11
40	13	13	15	15
50S	15	16	18	18
50	18	19	21	21
63S	21	23	23	23
63	23	24	25	25
75S	24	27	28	28
75	26	29	30	30
