CW Outdoor Aluminium Cable Glands

Features & Benefits

Suitable for indoor or outdoor applications
IP66 rating protection against water and dust ingress with a nylon thread washer
Designed, tested and certified to BS6121 Part 1 : 1989, IEC 62444 & EN6244
Temperature Range -60 C to 130 C

Industrial cable glands – armoured

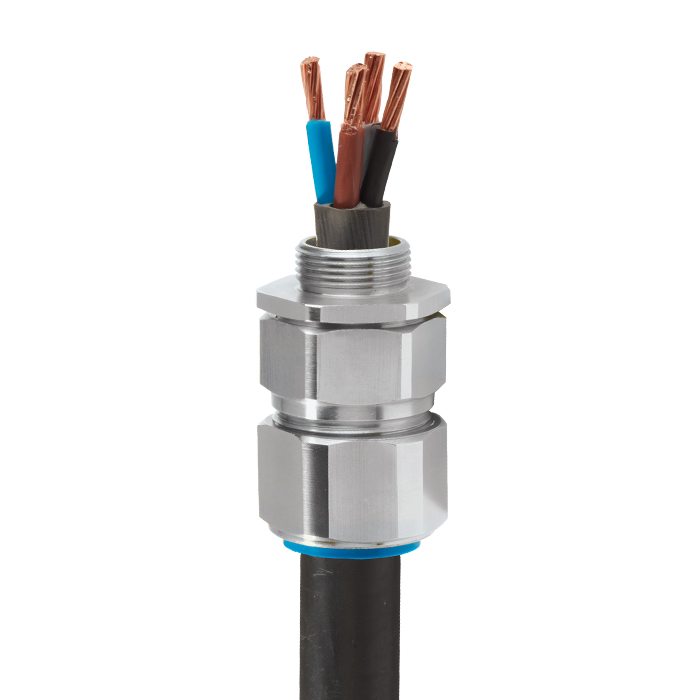

CW Outdoor Aluminium Cable Glands - AWA

A premium metric range of outdoor aluminium industrial cable glands designed for use with aluminium wire armoured cables to provide an environmental seal, superior mechanical retention and electrical continuity across the armours of the cables.

Part No	Cable Dia Range mm	Gland Size	Thread Length mm
CW/20S-A	9.5-15.9	M20	10
CW/20-A	12.5-20.9	M20	10
CW/25-A	18.2-26.2	M25	10
CW/32-A	23.7-33.9	M32	10
CW/40-A	27.9-40.4	M40	15
CW/50S-A	35.2-46.7	M50	15
CW/50-A	40.4-53.0	M50	15
CW/63S-A	45.6-59.4	M63	15
CW/63-A	54.6-65.8	M63	15
CW/75S-A	59.0-72.0	M75	15
CW/75-A	66.7-78.4	M75	15
