CX Outdoor Brass Cable Glands

Features & Benefits

Suitable for indoor or outdoor applications
IP66 rating protection against water and dust ingress with a nylon thread washer
Designed in accordance with European Standard EN62444
Temperature Range -60 C to 130 C

Industrial cable glands – armoured

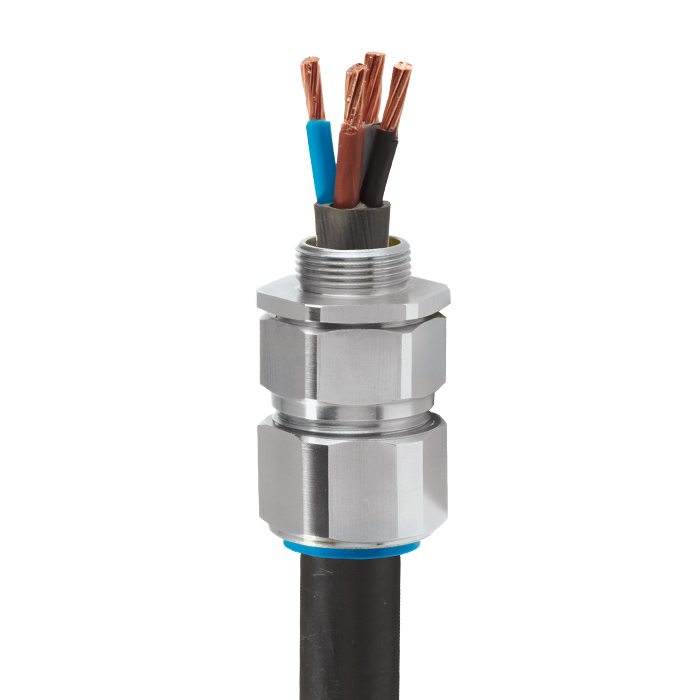

CX Outdoor Brass Cable Glands - Braided

A premium metric range of outdoor brass industrial cable glands designed for use with braided and steel tape armoured cables to provide an environmental seal, superior mechanical retention and electrical continuity across the armours of the cables.

Part No	Cable Dia Range mm	Gland Size	Thread Length mm
CX/20S-B	9.5-15.9	M20	10
CX/20-B	12.5-20.9	M20	10
CX/25-B	18.2-26.2	M25	10
CX/32-B	23.7-33.9	M32	10
CX/40-B	27.9-40.4	M40	15
CX/50S-B	35.2-46.7	M50	15
CX/50-B	40.4-53.0	M50	15
CX/63S-B	45.6-59.4	M63	15
CX/63-B	54.6-65.8	M63	15
CX/75S-B	59.0-72.0	M75	15
CX/75-B	66.7-78.4	M75	15
