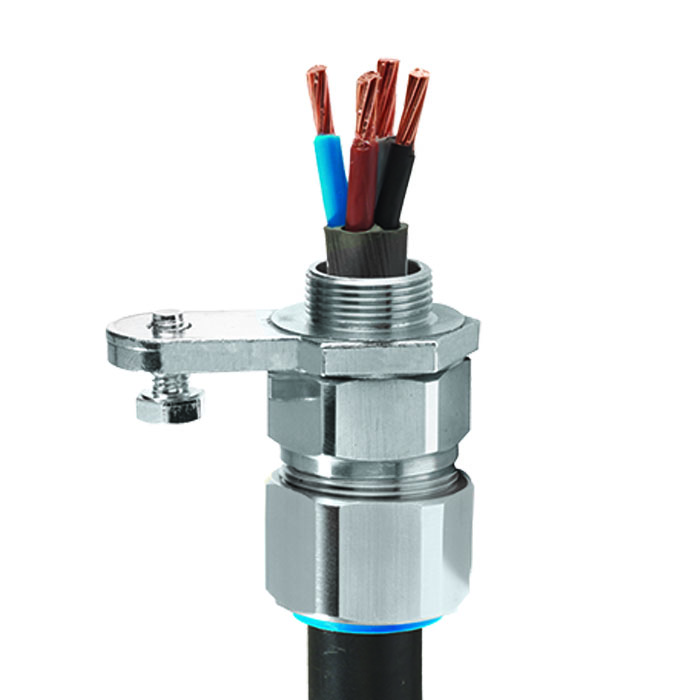

CWCIEL Outdoor Aluminium Integral Earth Cable Glands

Features & Benefits

Suitable for indoor or outdoor applications
Ideal for use on cables where high induced currents are experienced in the cable armouring
IP66 rating protection against water and dust ingress with a nylon thread washer
Temperature Range -60 C to 130 C

Integral earth cable glands – armoured

CWCIEL Outdoor Aluminium Integral Earth Cable Glands - AWA

A premium metric range of outdoor aluminium industrial cable glands designed for use with aluminium wire armoured cables with an integral earth lug for a low impedance connection to the armours of the cable.

Part No	Cable Dia Range mm	Gland Size	Thread Length mm
CWALCIEL/20S-B	9.5-15.9	M20	10
CWALCIEL/20-B	12.5-20.9	M20	10
CWALCIEL/25-B	18.2-26.2	M25	10
CWALCIEL/32-B	23.7-33.9	M32	10
CWALCIEL/40-B	27.9-40.4	M40	15
CWALCIEL/50S-B	35.2-46.7	M50	15
CWALCIEL/50-B	40.4-53.0	M50	15
CWALCIEL/63S-B	45.6-59.4	M63	15
CWALCIEL/63-B	54.6-65.8	M63	15
CWALCIEL/75S-B	59.0-72.0	M75	15
CWALCIEL/75-B	66.7-78.4	M75	15
