Features & Benefits

Suitable for indoor and outdoor applications
IP66/67/68 rated based on protection against water and dust ingress and use of seals
Designed, tested and certified to BS6121 Part 1 : 1989, IEC 62444 & EN6244
Temperature Range -60 C to 130 C
Available in high quality Brass as standard but Stainless Steel & Aluminium on request

Industrial cable glands - unarmoured

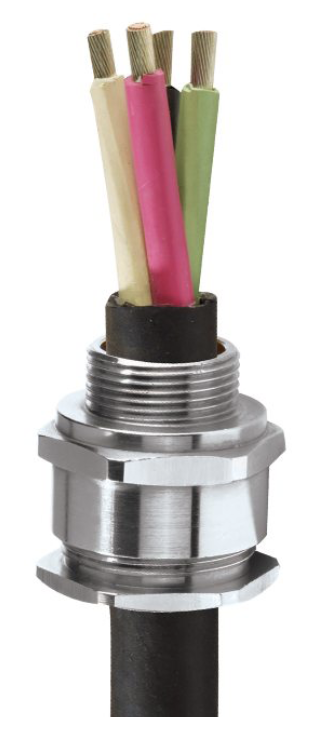

A2 Brass Cable Glands

A premium metric range of brass stuffing glands designed for use with unarmoured cables to provide superior mechanical protection and provide a seal at equipment entry.

Part No	Cable Dia Range mm	Gland Size	Thread Length mm
A2/20S-B	6.1-11.7	M20	10
A2/20-B	6.5-14.0	M20	10
A2/25-B	11.1-20.0	M25	10
A2/32-B	17.0-26.3	M32	10
A2/40-B	23.5-32.2	M40	15
A2/50S-B	31.0-38.2	M50	15
A2/50-B	35.6-44.0	M50	15
A2/63S-B	41.6-49.9	M63	15
A2/63-B	47.2-55.9	M63	15
A2/75S-B	54.0-61.9	M75	15
A2/75-B	61.1-67.9	M75	15
