A2 Polyamide Cable Glands

Features & Benefits

Suitable for indoor and outdoor applications
IP68 rated based on protection against water and dust ingress
Flammability rated to UL94-V2
Designed in accordance with European Standard EN50262
Temperature Range -40 C to 100 C
Available in black as standard but other colour available on request

Industrial cable glands - unarmoured

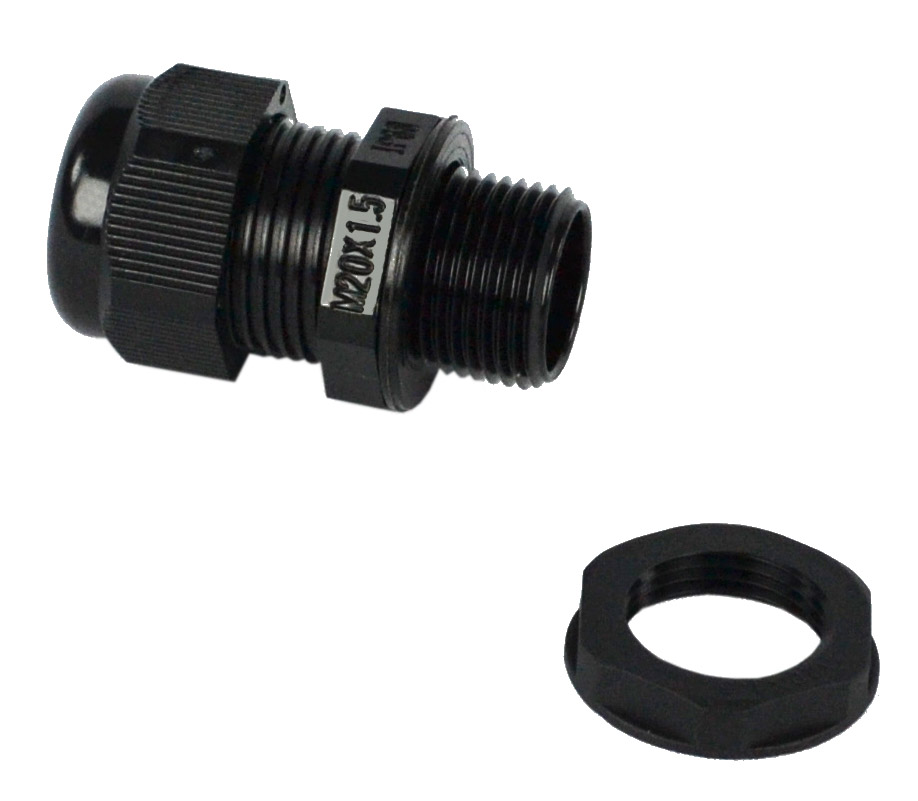

A2 Polyamide Cable Glands

A premium metric range of polyamide PA 6.6 stuffing glands designed for use with unarmoured cables to provide retention and a seal at equipment entry.

Part No	Cable Dia Range mm	Gland Size	Thread Length mm
A2/20S-N	5-9	M20	9
A2/20-N	6-12	M20	9
A2/20L-N	10-14	M20	9
A2/25-N	13-18	M25	11
A2/32-N	18-25	M32	11
A2/40-N	22-32	M40	13
A2/50-N	32-38	M50	13
A2/63-N	37-44	M63	14
