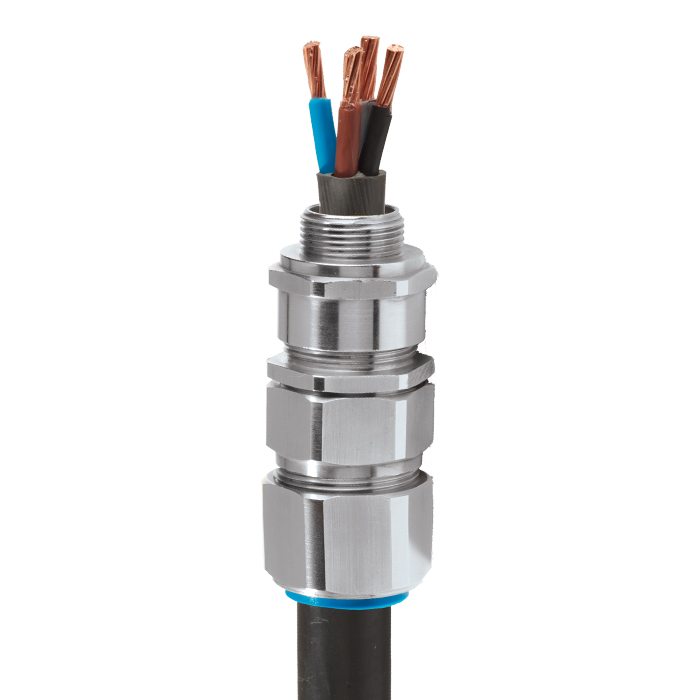

E1WAL Outdoor Brass Cable Gland

Features & Benefits

Suitable for harsh outdoor applications
IP66 rating protection against water and dust ingress
Designed in accordance with European Standard EN62444
Temperature Range -60 C to 130 C

Weatherproof cable glands – armoured

E1WAL Outdoor Brass Cable Gland - AWA

A premium metric range of outdoor aluminium weatherproof cable glands designed for use with aluminium wire armoured cables in harsh exposed environments with a double IP66 seal on the inner and outer sheath of the cables.A premium metric range of outdoor aluminium weatherproof cable glands designed for use with aluminium wire armoured cables in harsh exposed environments with a double IP66 seal on the inner and outer sheath of the cables.

Part No	Cable Dia Range mm	Gland Size	Thread Length mm
E1W/20S-A	6.1-11.6	M20	10
E1W/20-A	6.5-13.9	M20	10
E1W/25-A	11.1-19.9	M25	10
E1W/32-A	17.0-26.2	M32	10
E1W/40-A	22.0-32.1	M40	15
E1W/50S-A	29.5-38.1	M50	15
E1W/50-A	35.6-44.0	M50	15
E1W/63S-A	40.1-49.9	M63	15
E1W/63-A	47.7-55.9	M63	15
E1W/75S-A	52.8-61.9	M75	15
E1W/75-A	59.1-67.9	M75	15
