Cable pulling equipment

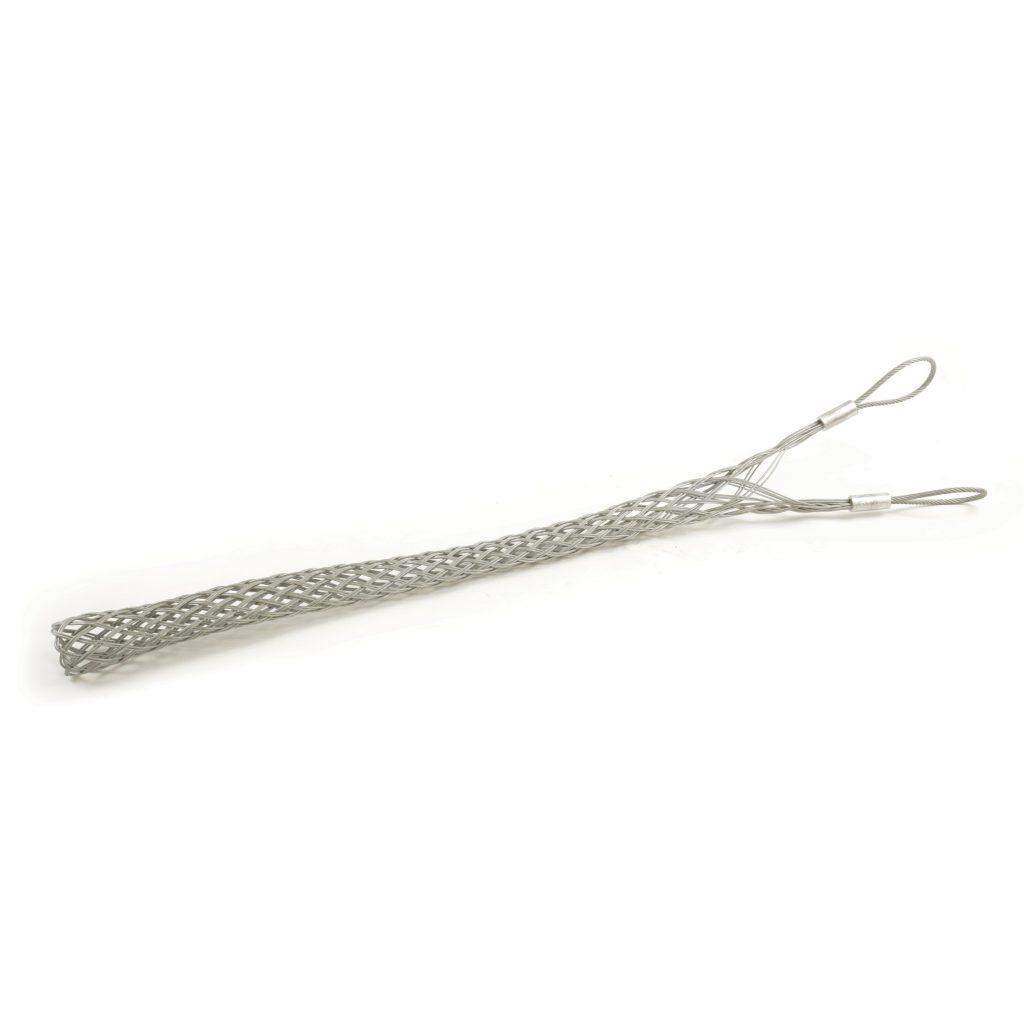

Double Eye Cable Stockings
A high quality range of double eye cable stockings designed to pull medium to heavy loads with a double eye which enables the cable to be passed through the stocking to facilitate pulling from multiple points along the cable.
| Part No | Cable Size mm | Overall Length mm | Approx Breaking Strength (kg) |
|---|---|---|---|
| DE10-13 | 10 – 13 | 230 | 760 |
| DE13-19 | 13 – 19 | 355 | 1015 |
| DE19-25 | 19 - 25 | 405 | 2540 |
| DE25-38 | 25 – 38 | 455 | 3555 |
| DE38-50 | 38 – 50 | 535 | 5080 |
| DE50-63 | 50 – 63 | 610 | 5080 |
| DE63-89 | 63 – 89 | 685 | 6095 |
| DE89-115 | 89 – 115 | 685 | 7110 |
| DE115-130 | 115 – 130 | 685 | 7110 |
