Cable pulling equipment

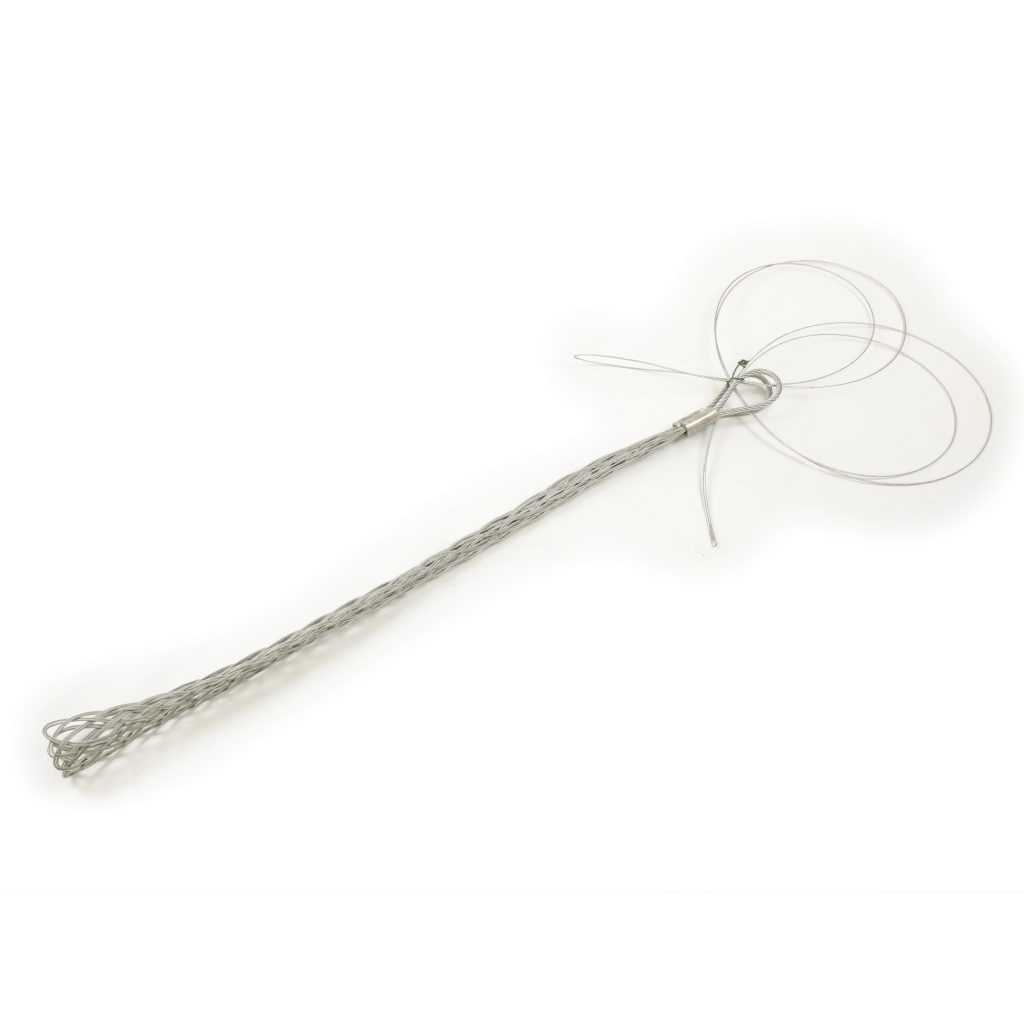

A high quality range of lace up cable stockings designed to pull medium to heavy loads. The lace up cable stocking is similar in use to the double eye but the grip is positioned on the cable and then stitched together, this particularly useful when the pull is from some way down the cable or when this is a connector on the cable end.
Part No | Cable Size mm | Overall Length mm | Approx Breaking Strength (kg) |
---|---|---|---|
LU10-13 | 10 – 13 | 305 | 760 |
LU13-19 | 13 – 19 | 430 | 1015 |
LU19-25 | 19 - 25 | 510 | 2540 |
LU25-38 | 25 – 38 | 610 | 3555 |
LU38-50 | 38 – 50 | 735 | 5080 |
LU50-63 | 50 – 63 | 865 | 5080 |
LU63-89 | 63 – 89 | 990 | 6095 |
LU89-115 | 89 – 115 | 990 | 7110 |
LU115-130 | 115 – 130 | 990 | 7110 |
