LV Aluminium Mechanical Lugs

Features & Benefits

Suitable for Copper or Aluminium conductors
Mechanical lugs are water tight and suitable for solid, sector, stranded and circular conductors
Designed to meet BS 4579 part 3
Shearbolt connectors with proven bolt tightening. Rated to 1kV
Other sizes available on request

LV aluminium mechnical lugs & connectors

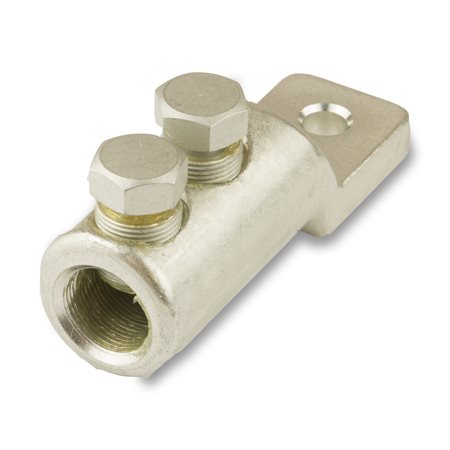

LV Aluminium Mechanical Lugs

A premium range of LV Aluminium mechanical lugs that are designed to be connected onto a conductor without crimping to facilitate the connection to equipment via the lug hole.

Part No	Size	Palm Hole Size **
SAL1.27	6 - 50	8.5
SAL1.271	6 - 50	10.5
SAL1.272	6 - 50	13.0
SAL2.27	35 - 95	10.5
SAL2.272	35 - 95	13
SAL3.27	95 - 240	13
SAL3.272	95 - 240	17
SAL4.27	150 - 300	13
SAL4.27	150 - 300	17
