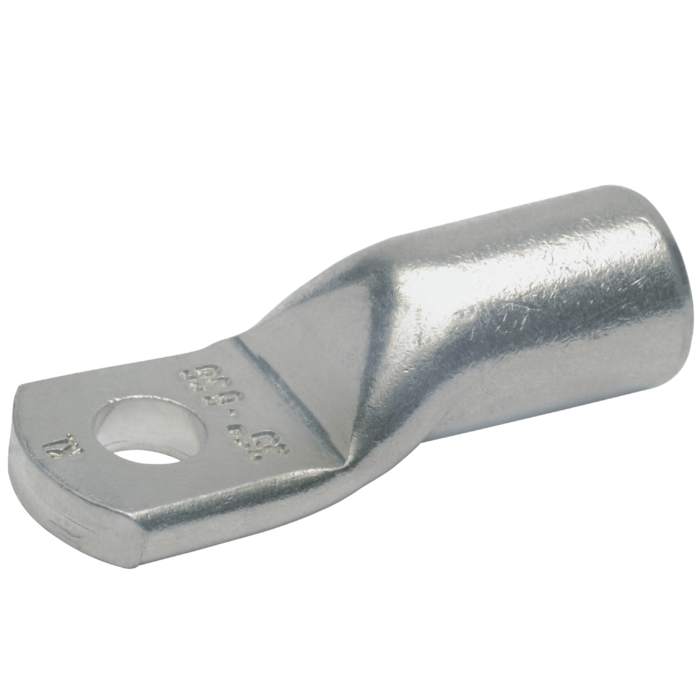

LV Narrow Palm Tinned Copper Crimp Lugs

Features & Benefits

Copper lugs are electrolytically tin plated to avoid oxidation and prevent corrosion
Reduced palm width for narrow applications
Crimp dies and installation tooling available on request
Other lug sizes to suit larger and smaller cables available on request

LV tinned copper crimp lugs & splices

LV Narrow Palm Tinned Copper Crimp Lugs

A premium range of tinned copper crimp lugs that are designed to be crimped onto copper LV cables to facilitate the termination of the cable via the lug hole into reduced spaced terminal blocks.

Part No	Palm Width	Size	Palm Hole Size **
NPCL35-**	15	35	6
NPCL50-**	15/17	50	6,8,10
NPCL70-**	17/19	70	6,8,10,12
NPCL95-**	19	95	6,8,10,12
NPCL120-**	19	120	6,8,10,12
NPCL150-**	19	150	6,8,10,12
NPCL185-**	24.5/31	185	10,12,16
NPCL240-**	31	240	10,12,16
NPCL300-**	31	300	10,12,16
