LV Standard Stainless Steel Copper Crimp Lugs

Features & Benefits

Manufactured from high quality V2A stainless steel
Can be used in temperatures upto 400C
Each lug has a sight hole for visual inspection of the conductor inserted
Crimp dies and installation tooling available on request
Other lug sizes to suit larger and smaller cables available on request

LV stainless steel crimp lugs & splices

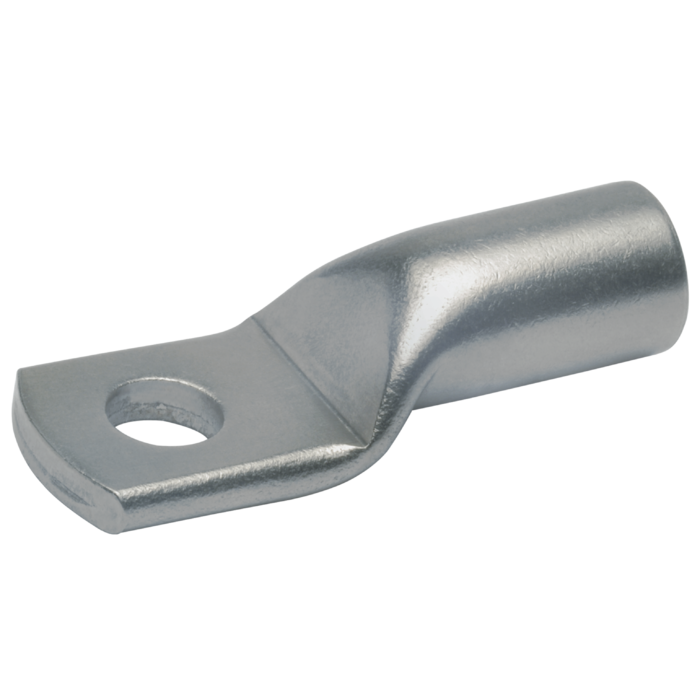

LV Standard Stainless Steel Copper Crimp Lugs

A premium range of Stainless Steel crimp lugs that are designed to be crimped onto LV cables to facilitate the termination of the cable via the lug hole in the harshest environments.

Part No	Size	Palm Hole Size **
SSL10-MS**	10	5,6,8
SSL16-MS**	16	5,6,8
SSL25-MS**	25	6,8
SSL35-MS**	35	6,8
SSL50-MS**	50	6,8,10,12
SSL70-MS**	70	8,10,12,16
SSL95-MS**	95	8,10,12
