MV tinned copper crimp lugs & splices

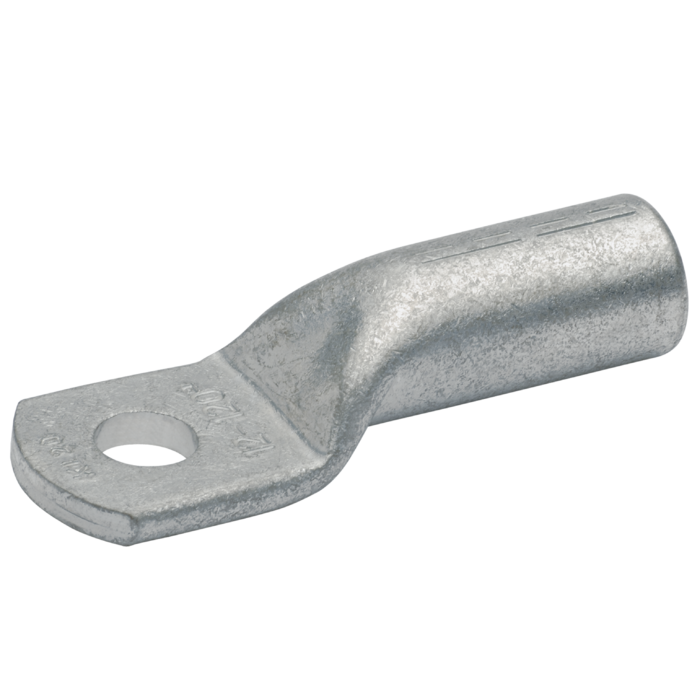

A premium range of tinned copper crimp lugs that are designed to be crimped onto copper MV cables to facilitate the termination of the cable via the lug hole.
Part No | Size | Palm Hole Size ** |
---|---|---|
MVCL6-MS** | 6 | 5,6,8 |
MVCL10-MS** | 10 | 5,6,8 |
MVCL16-MS** | 16 | 6,8,10,12 |
MVCL25-MS** | 25 | 6,8,10,12 |
MVCL35-MS** | 35 | 6,8,10,12,14 |
MVCL50-MS** | 50 | 8,10,12,14,16 |
MVCL70-MS** | 70 | 8,10,12,14,16 |
MVCL95-MS** | 95 | 8,10,12,14,16 |
MVCL120-MS** | 120 | 10,12,14,16,20 |
MVCL150-MS** | 150 | 10,12,14,16,20 |
MVCL185-MS** | 185 | 10,12,14,16,20 |
MVCL240-MS** | 240 | 12,14,16,20 |
MVCL300-MS** | 300 | 14,16,20 |
MVCL400-MS** | 400 | 14,16,20 |
MVCL500-MS** | 500 | 16,20 |
MVCL625-MS** | 625 | 16,20 |
MVCL800-MS** | 800 | 16,20 |
MVCL1000-MS** | 1000 | 16,20 |
