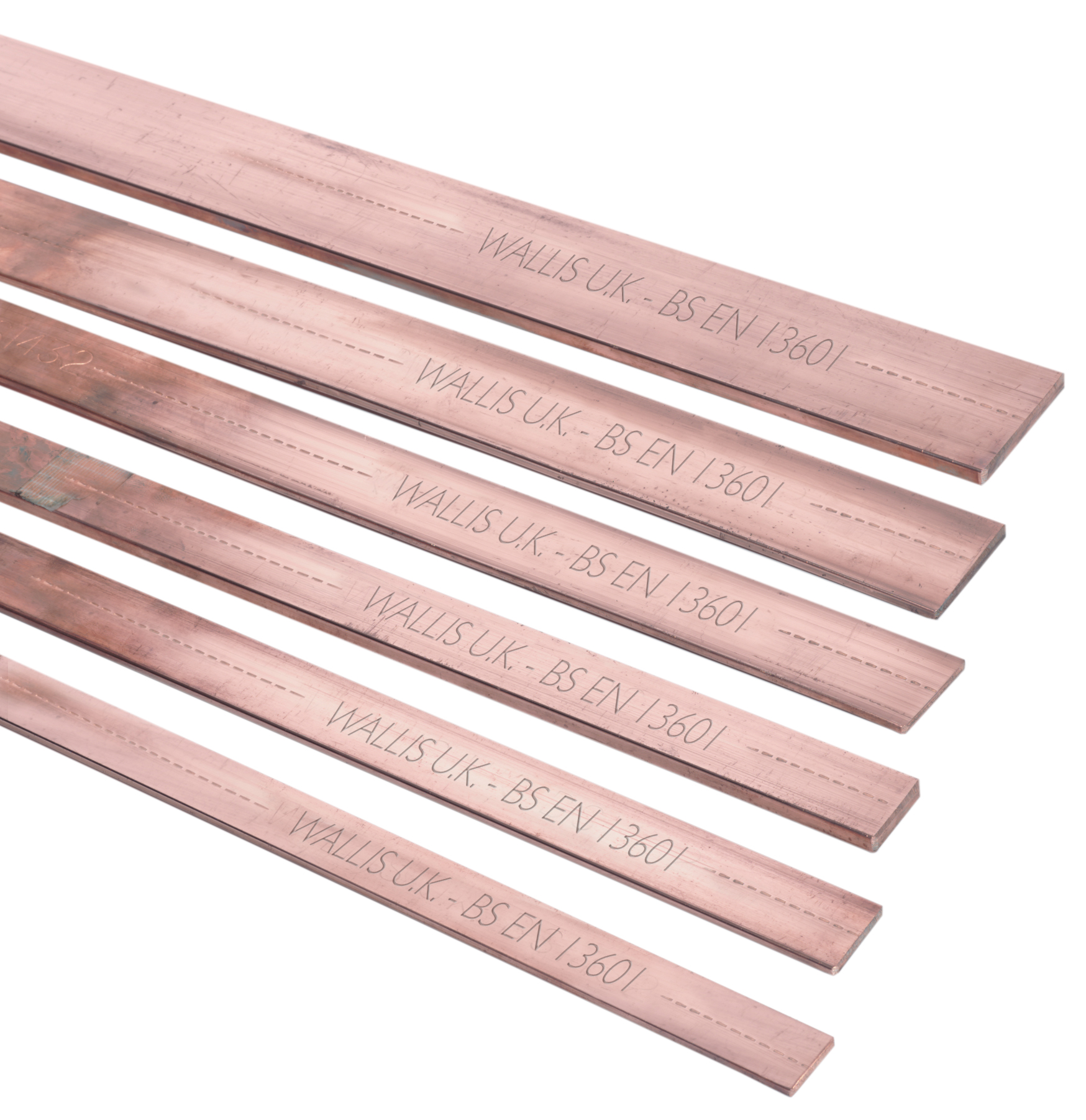

Earthing conductors
A range of soft annealed bare copper tapes that are used as high conductivity, corrosion resistant conductors as part of an earthing or lightning protection system.
Part No | Size mm | CSA mm2 | Weight m / kg | Standard Coil Size m |
---|---|---|---|---|
TC253 | 25 x 3 | 75 | 0.67 | 50 |
TC254 | 25 x 4 | 100 | 0.89 | 50 |
TC256 | 25 x 6 | 150 | 1.34 | 40 |
TC386 | 38 x 6 | 228 | 2.03 | 25 |
TC403 | 40 x 3 | 120 | 1.07 | 40 |
TC404 | 40 x 4 | 160 | 1.43 | 30 |
TC406 | 40 x 6 | 240 | 2.14 | 25 |
TC504 | 50 x 4 | 200 | 1.78 | 30 |
TC506 | 50 x 6 | 300 | 2.68 | 20 |
TC606 | 60 x 6 | 360 | 3.21 | 15 |
TC706 | 70 x 6 | 420 | 3.75 | 15 |
TC806 | 80 x 6 | 480 | 4.28 | 12 |
