Features & Benefits

Conductor size calculated based on system fault rating and the recommendations of BS7430
Manufactured from high conductivity copper to BS 6004
Soft drawn to ensure a flexible conductor installation
Available in different coil sizes on request
Supplied in any length in line customer requirements

Earthing conductors

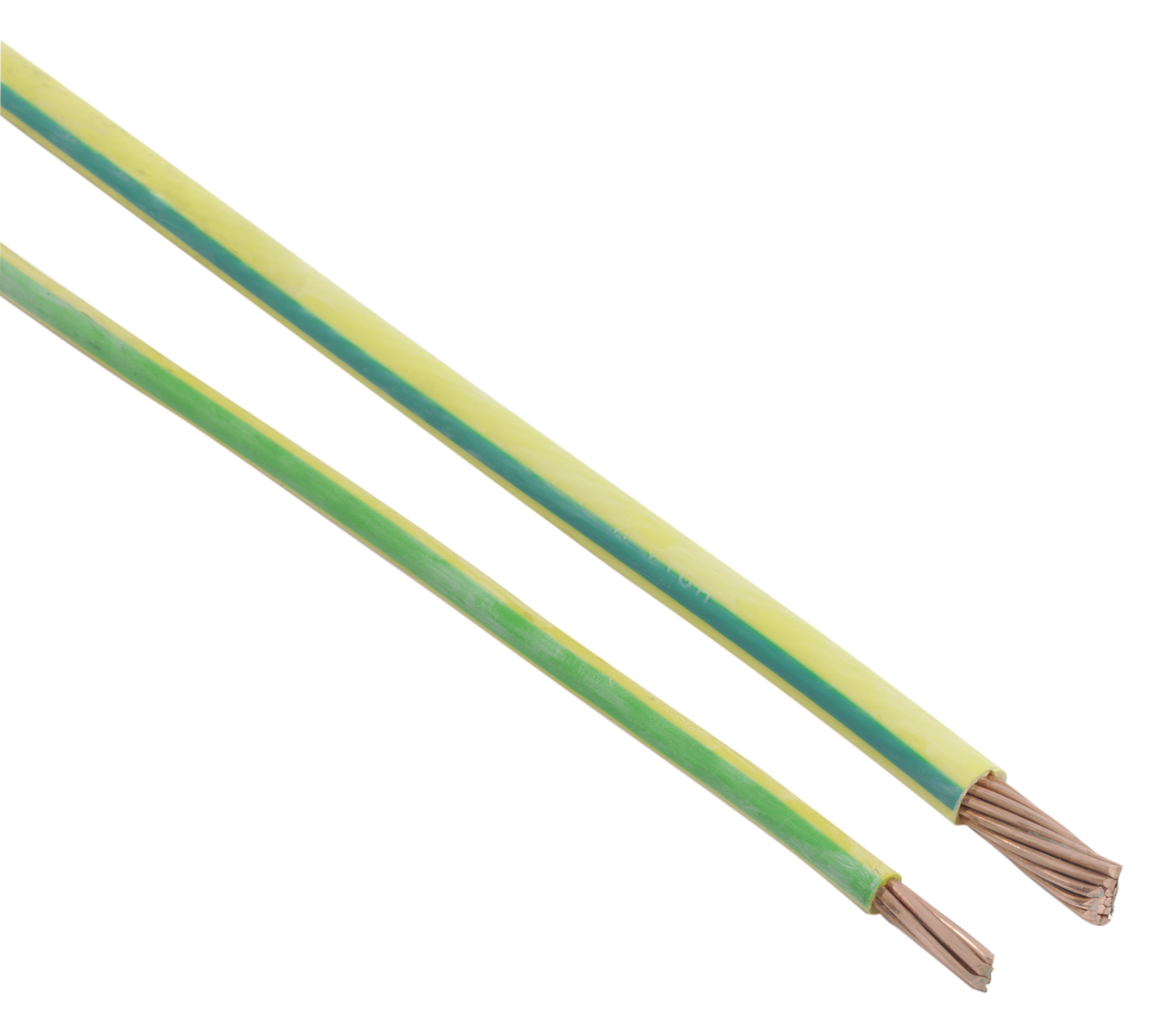

PVC Covered Soft Copper Cable – 6491X

A range of green & yellow PVC covered soft stranded copper cables that are used as high conductivity, corrosion resistant conductors as part of an earthing or lightning protection system.

Part No	CSA mm²	Stranding Details	Weight m / kg
SCC025 -6491X	25	7 x 2.10	0.23
SCC035 -6491X	35	7 x 2.52	0.31
SCC050 -6491X	50	19 x 1.78	0.44
SCC070 -6491X	70	19 x 2.14	0.62
SCC095 -6491X	95	19 x 2.52	0.82
SCC120 -6491X	120	32 x 2.03	1.03
SCC150 -6491X	150	32 x 2.25	1.44
SCC185 -6491X	185	32 x 2.52	1.63
SCC240 -6491X	240	61 x 2.25	2.30
SCC300 -6491X	300	61 x 2.25	2.76
SCC400 -6491X	400	61 x 2.85	3.75
