Conductor connection clamps

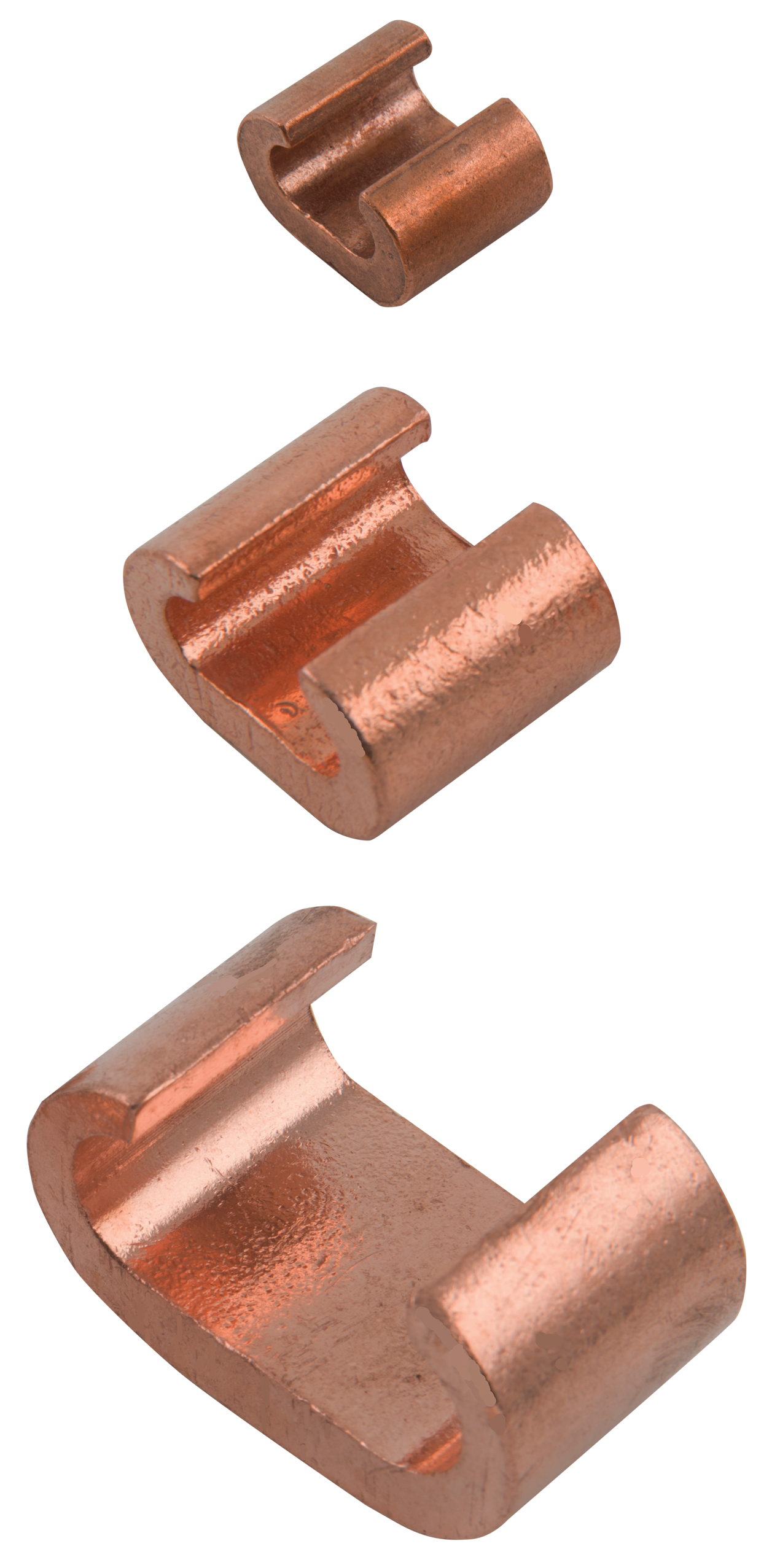

A range of C crimp cable connector clamps designed for tap and parallel connections with stranded copper cables in below ground earthing systems.
Part No | Main mm2 | Tap mm2 | Length mm | Width mm | Heightmm | Weight Kg |
---|---|---|---|---|---|---|
CCC025 | 25 | 10-25 | 24 | 20 | 15 | 0.04 |
CCC035 | 35 | 25-35 | 27 | 20 | 15 | 0.05 |
CCC050 | 50 | 16-50 | 27 | 20 | 17 | 0.07 |
CCC070 | 50-70 | 35-70 | 34 | 28 | 21 | 0.07 |
CCC095 | 70-95 | 95 | 41 | 30 | 26 | 0.12 |
CCC0120 | 120 | 35-120 | 45 | 30 | 28 | 0.12 |
CCC0120 | 150 | 6-70 | 45 | 30 | 28 | 0.15 |
CCC0150 | 150 | 95-150 | 45 | 30 | 28 | 0.15 |
CCC0185 | 120-185 | 95-185 | 54 | 35 | 33 | 0.20 |
CCC0185 | 150-185 | 70-150 | 54 | 35 | 33 | 0.20 |
