Conductor connection clamps

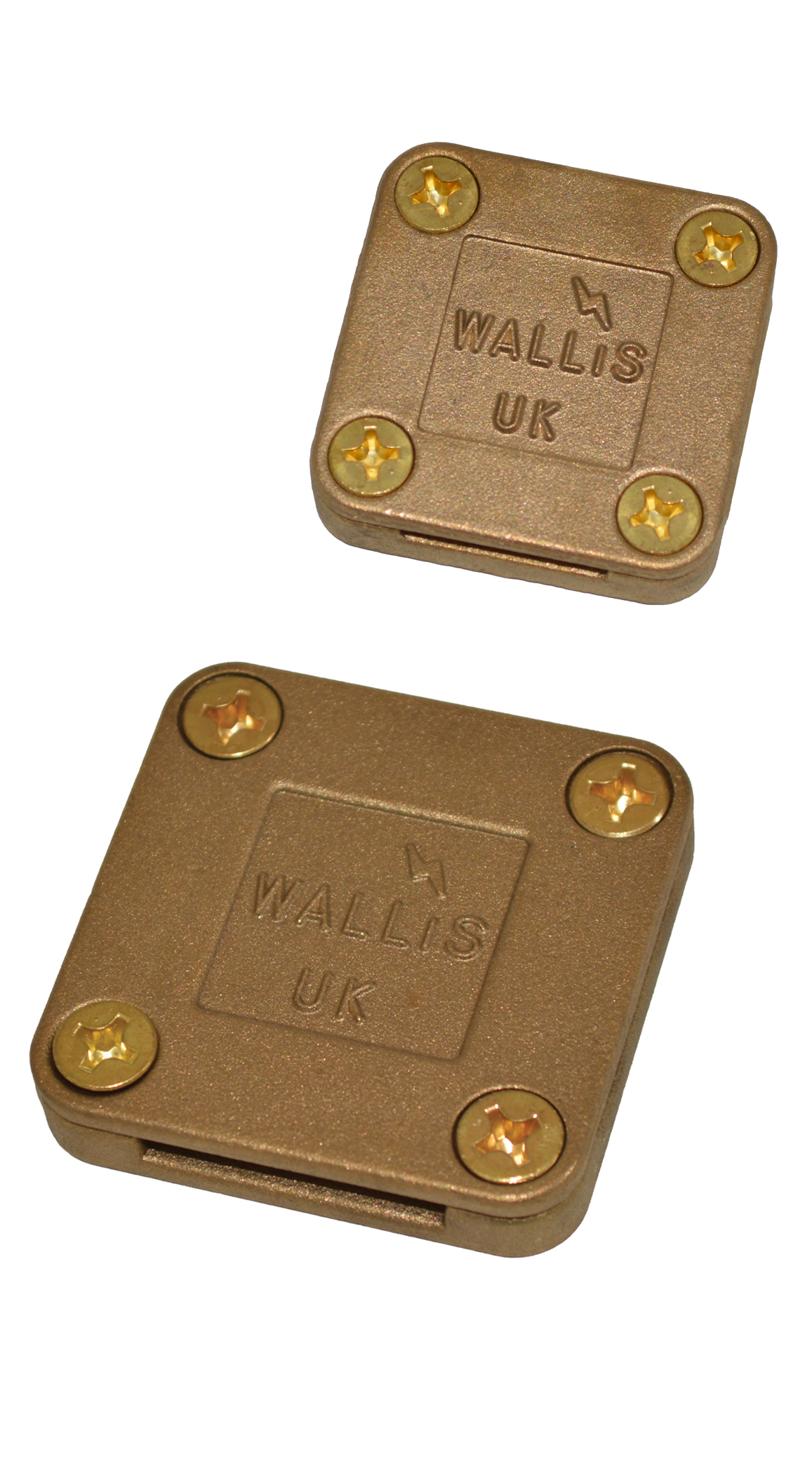

Square Tape Connector Clamps
A range of square tape connector clamps designed to join a range of tape sizes in a straight, tee joint or cross position which can be used in a lightning protection system or a connection clamp in an above or below ground earthing system.
| Part No | Max Size mm | Length mm | Width mm | Height mm | Weight Kg |
|---|---|---|---|---|---|
| JG253 | 25 x 3 | 50 | 50 | 13 | 0.15 |
| JG404 | 40 x 4 | 66 | 66 | 15 | 0.25 |
| JG506 | 50 x 6 | 80 | 80 | 22 | 0.52 |
