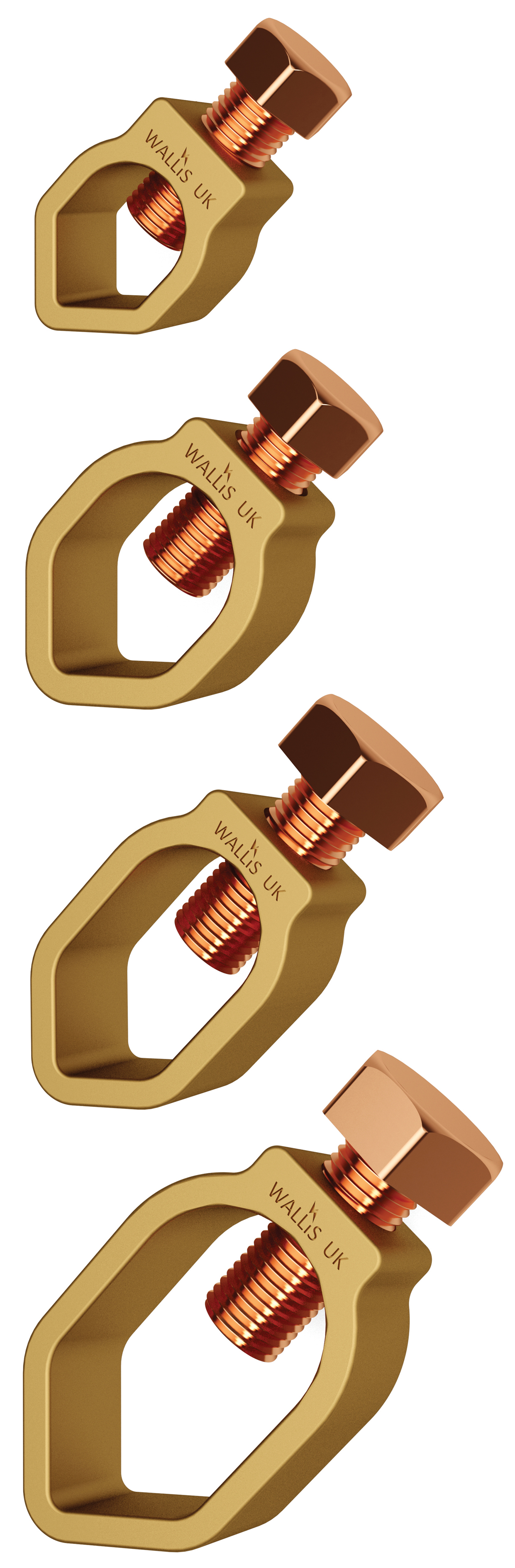

Earth rod clamps
A range of high quality earth rod to cable clamps are designed to connect different sizes of copper cable conductors to earth rods which are normally installed within an earth pit housing.
Part No | Shank mm | Cable Range mm | Length mm | Width mm | Height mm | Weight kg | ||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ERR1635 | 14.2 | 6 – 16 | 36 | 28 | 18 | 0.07 | ERR1670 | 14.2 | 16 - 70 | 41 | 26 | 20 | 0.08 | ERR1670 | 16.0 | 6 - 70 | 41 | 26 | 20 | 0.08 | ERR2095 | 14.2 | 35 - 150 | 48 | 30 | 18 | 0.09 | ERR2095 | 16.0 | 16 - 150 | 48 | 30 | 18 | 0.09 |
ERR1635 | 14.2 | 6 – 16 | 36 | 28 | 18 | 0.07 | ||||||||||||||||||||||||||||
ERR1670 | 14.2 | 16 - 70 | 41 | 26 | 20 | 0.08 | ||||||||||||||||||||||||||||
ERR1670 | 16.0 | 6 - 70 | 41 | 26 | 20 | 0.08 | ||||||||||||||||||||||||||||
ERR2095 | 14.2 | 35 - 150 | 48 | 30 | 18 | 0.09 | ||||||||||||||||||||||||||||
ERR2095 | 16.0 | 16 - 150 | 48 | 30 | 18 | 0.09 |
