Cable breakouts & end caps

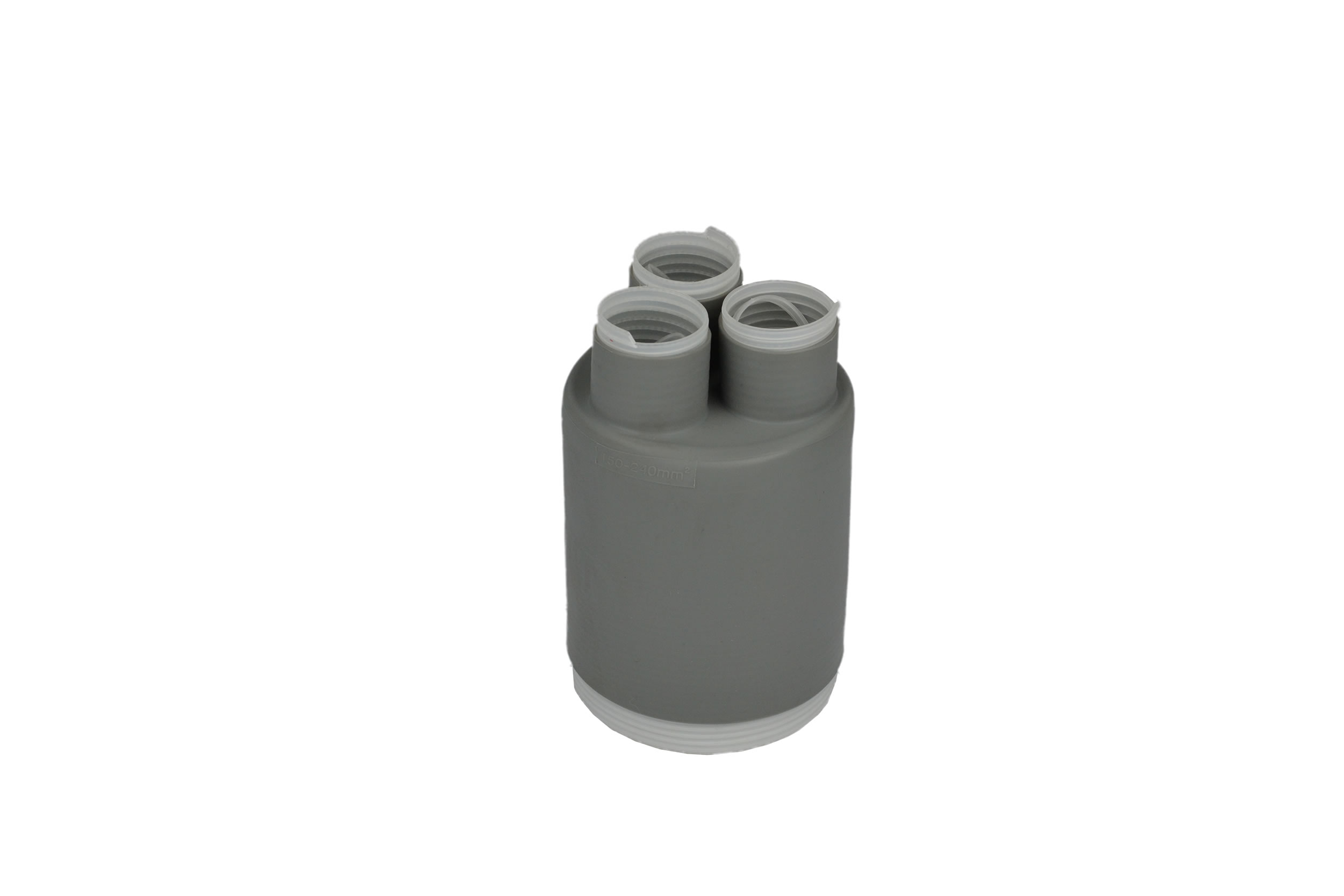

A range of coldshrink cable breakouts designed to provide an environmental seal to the crutch of 4 core plastic and paper insulated cables rated up to 1.1kV.
Part No | Cable Range mm | Thickness - Tube mm | Thickness - Breakout mm |
---|---|---|---|
RCSBR-4-0820 | 50-20 | 4.0 | 3.0 |
RCSBR-4-0828 | 70-28 | 4.5 | 2.5 |
RCSBR-4-1435 | 100-35 | 3.5 | 2.5 |
RCSBR-4-2555 | 135-55 | 4.2 | 3.3 |
