Heatshrink Cable Breakouts

Features & Benefits

The heatshrink breakouts are made from thermally stabilized cross linked polymeric material and internally coated with mastic / hot melt adhesive
UV & Weather resistant
Suitable for use in temperatures between -30C and 70C
Dielectric Strength 120kV/cm
Supplied in black as standard
Available in other sizes on request

Cable breakouts & end caps

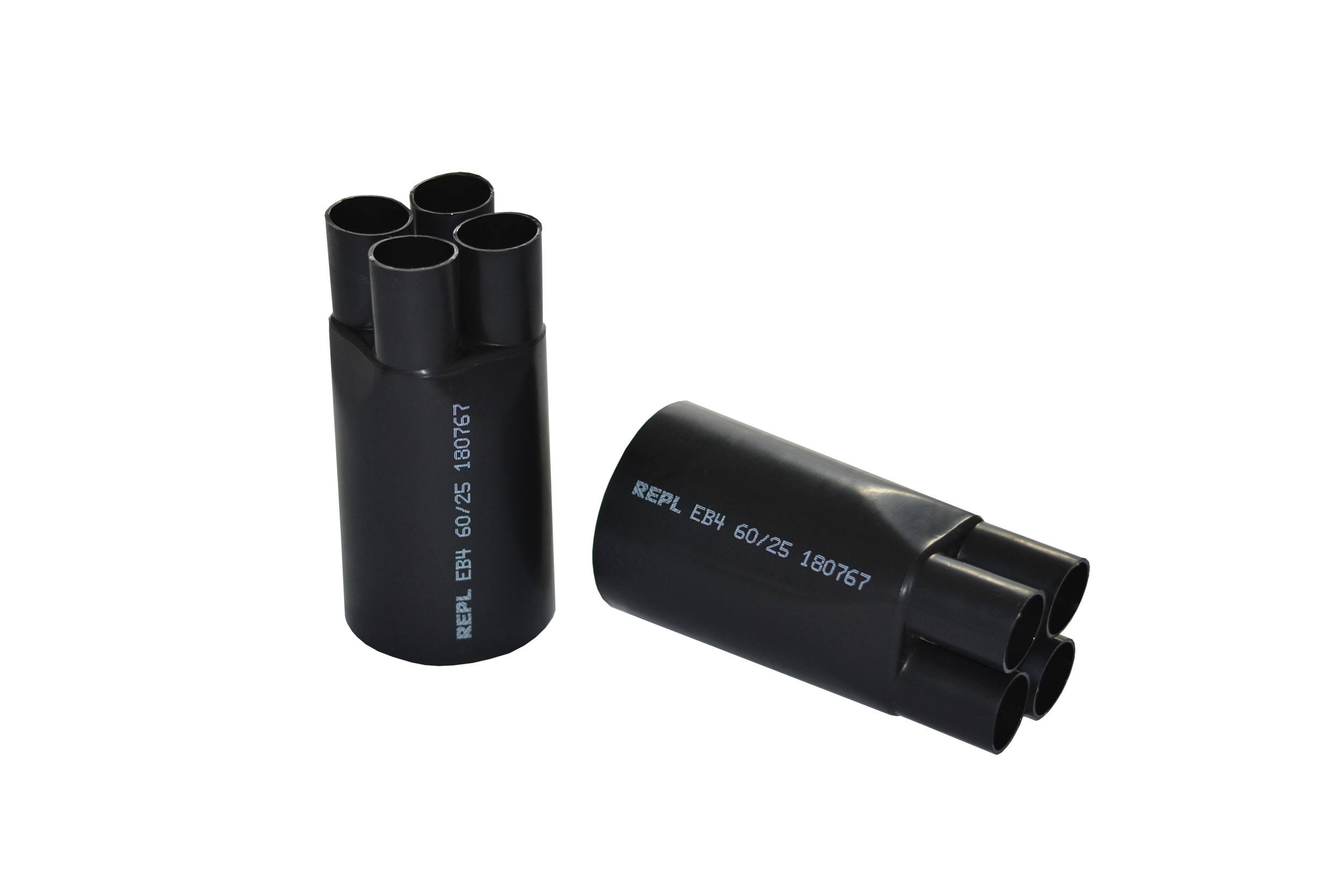

Heatshrink Cable Breakouts

A range of heatshrink cable breakouts designed to provide an environmental seal to the crutch of 4 core plastic and paper insulated cables rated up to 1.1kV.

Part No	Cable Range mm	Thickness - Tube mm	Thickness - Breakout mm
EB4-28-09	28-09	2.2	1.7
EB4-35-15	35-15	2.5	1.8
EB4-47-23	47-23	4.0	3.0
EB4-60-25	60-25	4.2	2.5
EB4-78-36	78-36	3.9	3.0
EB4-95-36	95-36	3.5	3.0
EB4-117-36	117-36	3.5	3.0
