Features & Benefits

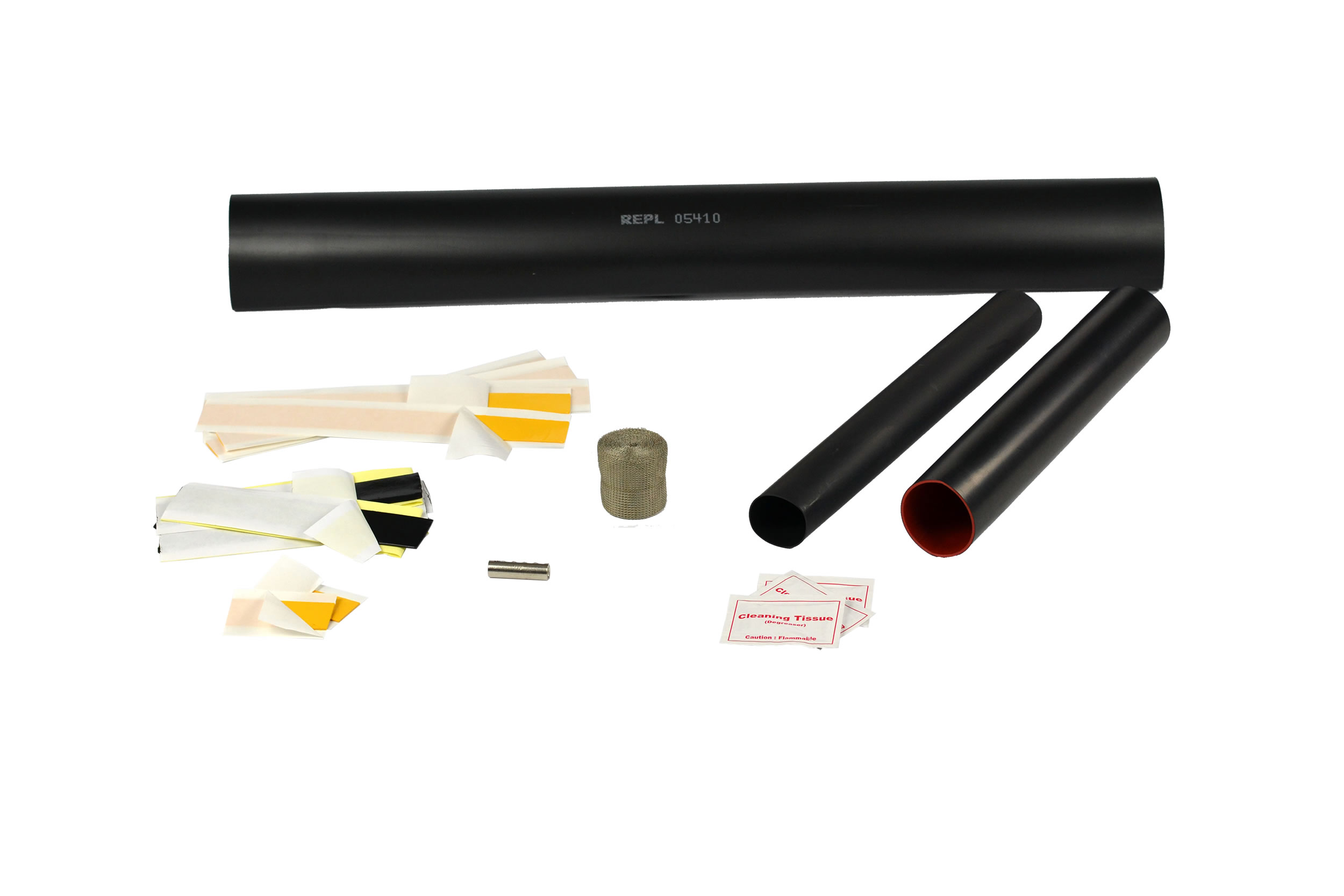

The straight joint comprises of stress control tube, insulating tube, stress grading mastic, sealing mastic, tinned copper mesh, heat shrink outer protection and full jointing instruction
Suitable for both XLPE and EPR insulated cables
Can be used on the individual cores of an 11kV triplex cable
Small range covers wide cable cross sections
Unlimited shelf life
Certified and Tested to CENELEC HD 629.1.S2, IEC 60502-4 and IEEE-48

11kv single core cable joints

11kV Single Core Heatshrink Cable Joints – CWS/XLPE

A range of single core heat shrink straight joints designed to connect 11kv XLPE/EPR insulated cables compatible with both compression and mechanical connector types.

Part No	Cable Cross Section	Dia over insulation
RHSJU 12X 25-70-1	25-70mm2	14.6-18.6mm
RHSJU 12X 95-185-1	95-185mm2	18.6-23.1mm
RHSJU 12X 185-300-1	185-300mm2	23.1-27.6mm
RHSJU 12X 300-630-1	300-630mm2	27.6-37.6mm
RHSJU 12X 630-1000-1	630-1000mm2	37.6-45.6mm
