11kv single core cable joints

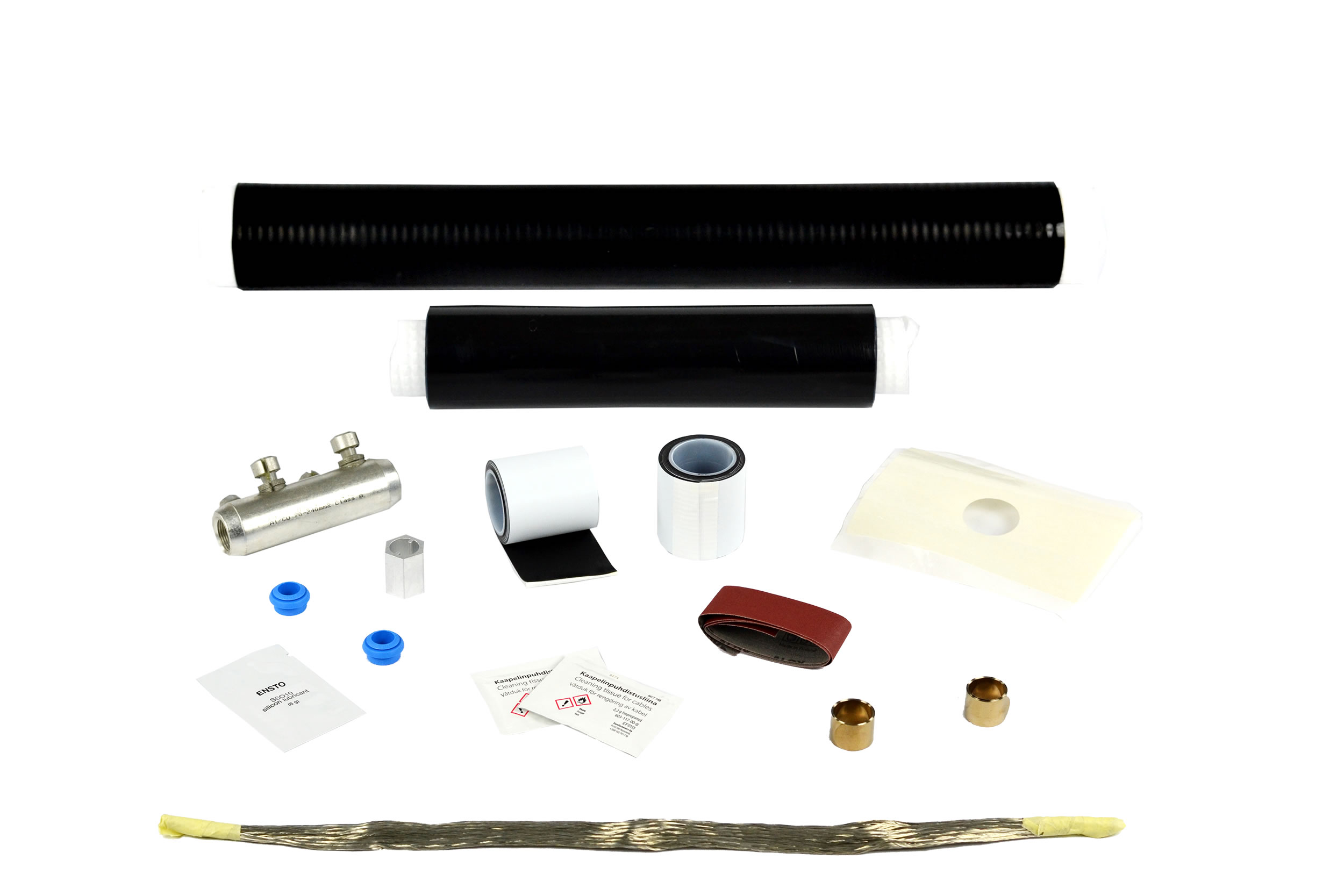

A range of single core hybrid straight joints designed to connect 11kv XLPE/EPR insulated cables compatible with both compression and mechanical connector types. These joints are designed to offer the speed and reliability of cold shrink technology while keeping the benefits of an adhesive lined heat shrink outer protection.
Part No | Cable Cross Section | Min Dia over insulation |
---|---|---|
CJH11.2402C | 35-95mm2 | 13.8mm |
CJH11.2403C | 95-240mm2 | 18.4mm |
CJH11.2404C | 240-400mm2 | 25.3mm |
CJH11.2405C | 400-630mm2 | 31.1mm |
CJH11.2406C | 630-1000mm2 | 36.8mm |
