Features & Benefits

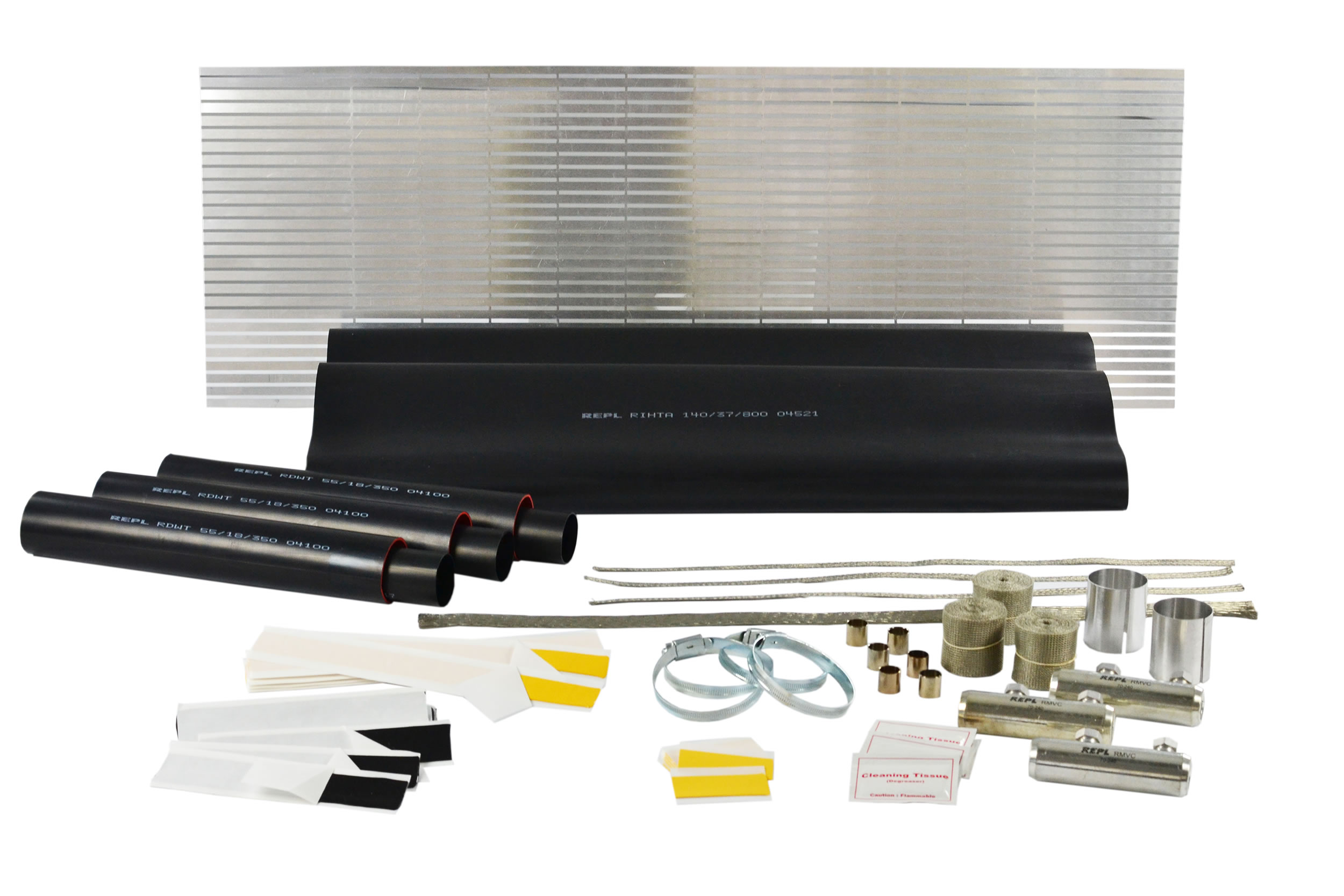

  • The straight joint comprises of stress control tube, insulating tube, stress grading mastic, sealing mastic, armour cage, conductive breakout, heat shrink outer protection and full jointing instruction
  • Suitable for XLPE CTS SWA cables
  • Small range covers wide cable cross sections
  • Unlimited shelf life
  • Certified and Tested to CENELEC HD 629.1.S2, IEC 60502-4 and IEEE-48

11kv three core cable joints

11kV Three Core Heat shrink Cable Joints – CTS/SWA/XLPE

A range of three core heat shrink straight joints designed to connect 11kv XLPE insulated cables compatible with both compression and mechanical connector types.

Part No Cable Cross Section Dia over insulation
RHSJA 12X 25-70-325-70mm214.6-18.6mm
RHSJA 12X 95-185-395-185mm218.6-23.1mm
RHSJA 12X 185-300-3185-300mm223.1-27.6mm
RHSJA 12X 300-400-3300-400mm227.6-37.6mm
