11kV Transition Heat shrink Cable Joint – 3C/CTS/SWA/XLPE

Features & Benefits

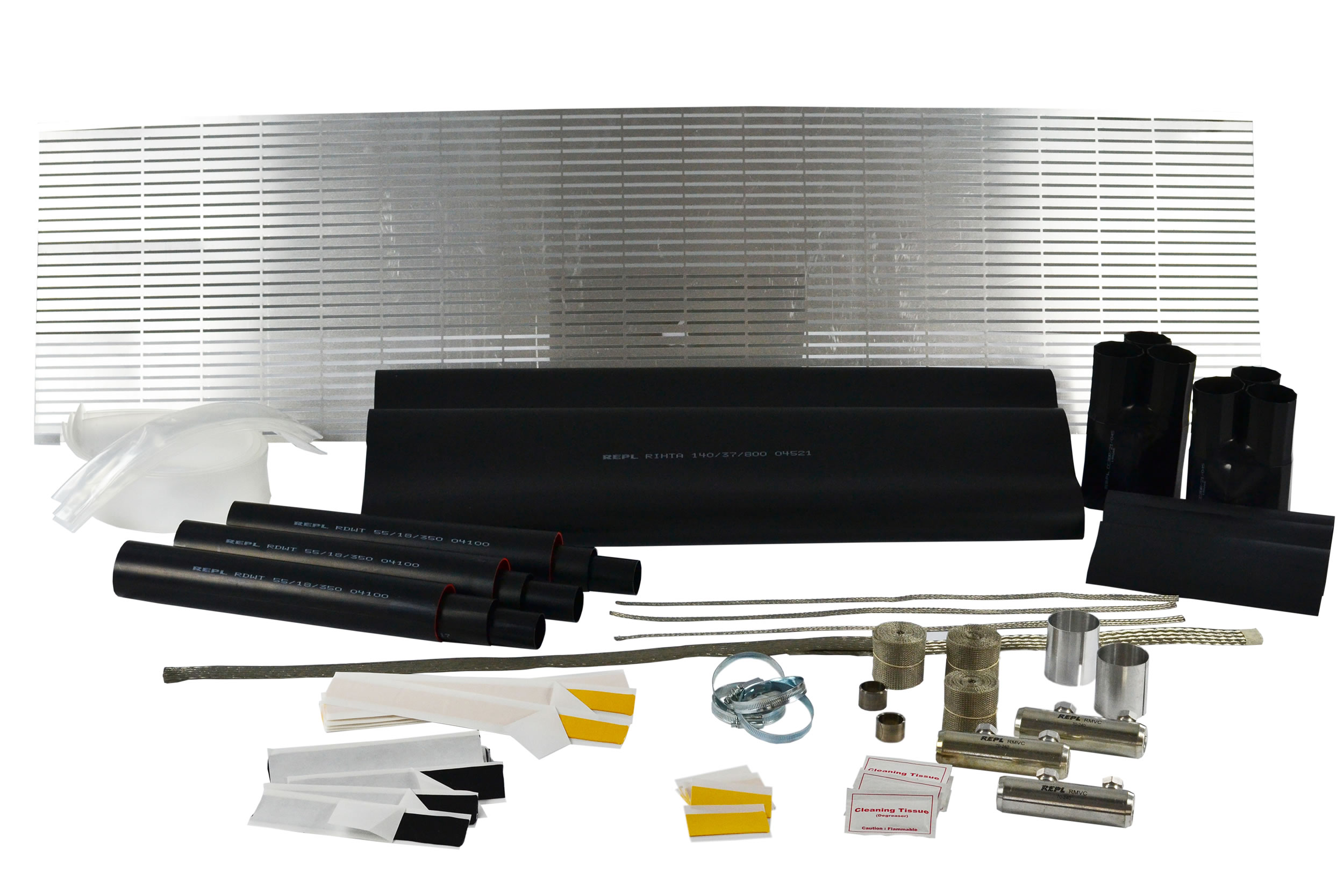

The straight joint comprises of stress control tube, insulating tube, stress grading mastic, sealing mastic, Armour earthing, Oil barrier tube, Conductive tube, conductive breakout, heat shrink outer protection and full jointing instruction
Suitable for transition between XLPE and PILC cables
Small range covers wide cable cross sections
Unlimited shelf life
Certified and Tested to CENELEC HD 629.1.S2, IEC 60502-4 and IEEE-48

11kv transition cable joints

11kV Transition Heat shrink Cable Joint – 3C/CTS/SWA/XLPE – 3C/CTS/LS/PILC

A range of heat shrink three core transition joints to connect three core XLPE SWA cable to three core PILC, Lead Sheath cables. All suitable for the use with compression or mechanical connectors.

Part No	Cable Cross Section	Dia over insulation
RHSJA 12PX 25-70-3	25-70mm2	14.6-18.6mm
RHSJA 12PX 95-185-3	95-185mm2	18.6-23.1mm
RHSJA 12PX 185-300-3	185-300mm2	23.1-27.6mm
RHSJA 12PX 300-400-3	300-400mm2	27.6-37.6mm
