11kV Trifurcating Transition Heat shrink Cable Joint - 3C/CTS/LS/PILC

Features & Benefits

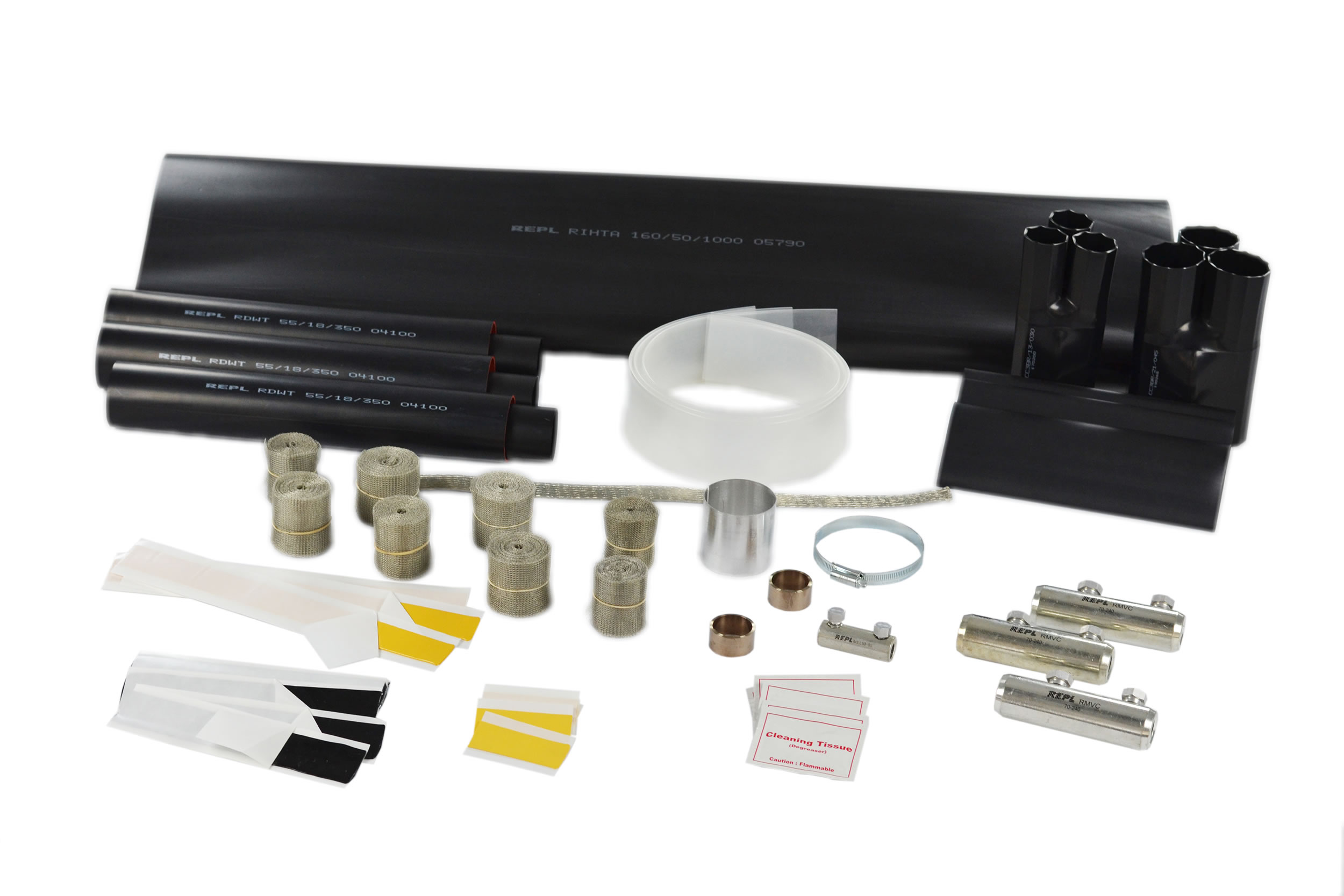

The trifurcating transition joints comprises of stress control tube, insulating tube, stress grading mastic, armour earthing kit, Oil barrier tube, sealing mastics, 3 core breakout and heavy wall heat shrink corrosion protection tube
Suitable for three core cables to single core cables
Small range covers wide cable cross sections
Options available for single core armoured cables - contact office for further info
Certified and Tested to CENELEC HD 629.1.S2, IEC 60502-4 and IEEE-48

11kv trifurcating/trifurcating transition cable joints

11kV Trifurcating Transition Heat shrink Cable Joint - 3C/CTS/LS/PILC – 1C/CWS/XLPE

A range of heat shrink trifurcating transition joints to connect three core PILC, Lead Sheath cables to single core unarmoured or Triplex Cables. All joints are suitable for both compression or mechanical connectors.

Part No	Cable Cross Section	Voltage
RHTJU 12PX 25-70	25-70mm2	11kv
RHTJU 12PX 95-185	95-185mm2	11kv
RHTJU 12PX 185-300	185-300mm2	11kv
RHTJU 12PX 400-630	400-630mm2	11kv
