33kV Single Core Hybrid Cable Joints

Features & Benefits

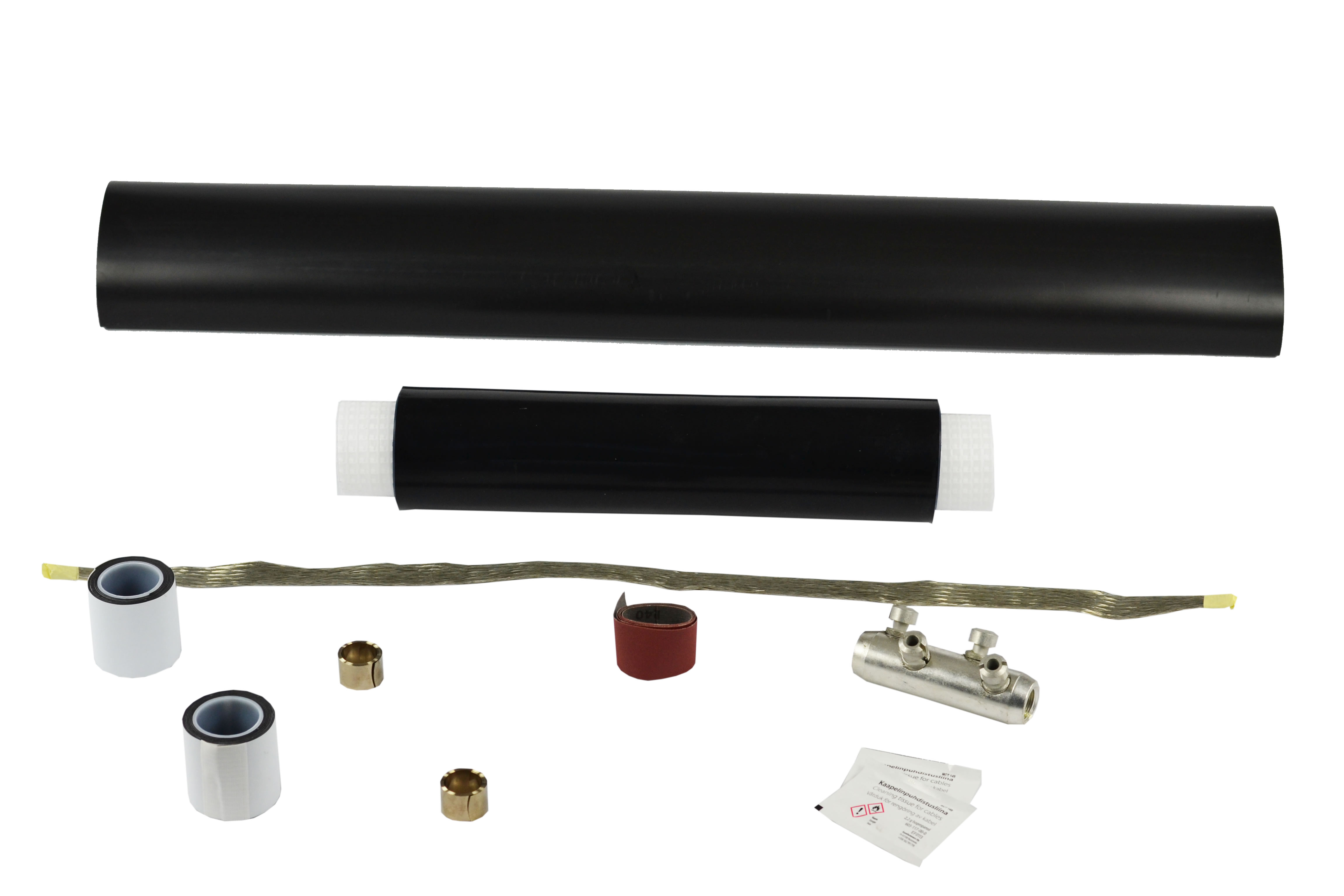

The kit includes mastics, tapes, cleaning materials, cold shrink insulating tubes, tubular copper net for shielding of the joint and a heat shrink outer protection tube
Suitable for both XLPE and EPR insulated cables
Joints complete with mechanical connector
Integrated geometric stress control

33kv single core cable joints

33kV Single Core Hybrid Cable Joints – CWS /XLPE

A range of single core hybrid straight joints designed to connect 33kv XLPE/EPR insulated cables compatible with both compression and mechanical connector types. These joints are designed to offer the speed and reliability of cold shrink technology while keeping the benefits of an adhesive lined heat shrink outer protection.

Part No	Cable Cross Section	Min Dia over insulation
CJH11.4203C	70-2402	25.3mm
CJH11.4204C	120-300mm2	25.3mm
CJH11.42045C	185-400mm2	25.3mm
CJH11.4205CC	400-630mm2	31.1mm
CJH11.4206C	630-1000mm2	36.8mm
