Features & Benefits

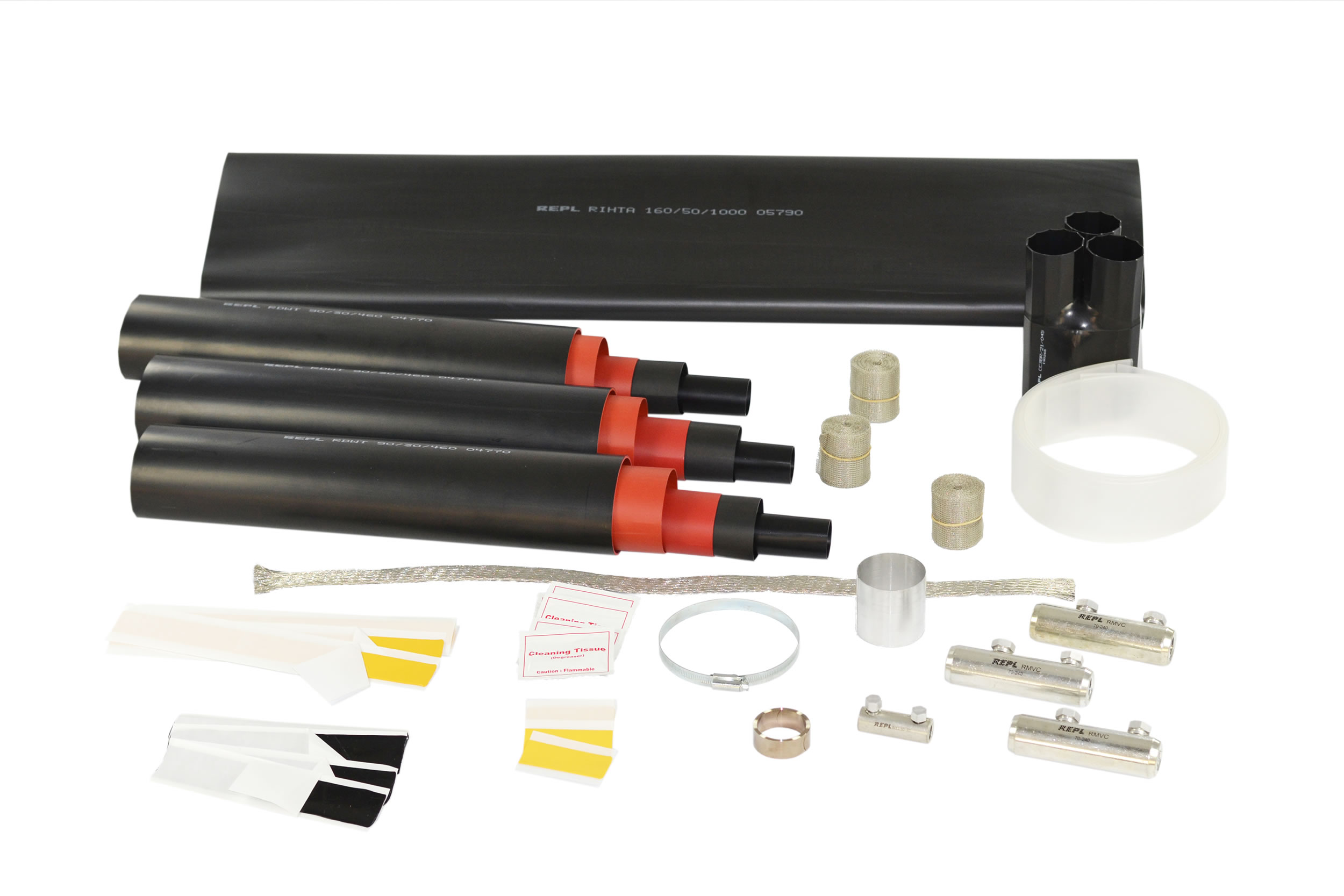

The straight joint comprises of stress control tube, insulating tube, stress grading mastic, sealing mastic, Oil barrier tubes, conductive breakout, armour cage, heat shrink outer protection and full jointing instruction
Suitable for PILC CTS SWA cables
Small range covers wide cable cross sections
Unlimited shelf life
Certified and Tested to CENELEC HD 629.1.S2, IEC 60502-4 and IEEE-48

33kv three core cable joints

33kV Three Core Heat shrink Cable Joints – CTS/LS/PILC

A range of three core heat shrink straight joints designed to connect 33kv PILC insulated cables compatible with both compression and mechanical connector types.

Part No	Cable Cross Section	Dia over insulation
RHSJA 36P 50-95-3	50-95mm2	24-27.8mm
RHSJA 36P 95-185-3	95-185mm2	27.8-32.3mm
RHSJA 36P 185-300-3	185-300mm2	32.3-36.8mm
RHSJA 36P 300-400-3	300-400mm2	36.8-46.8mm
