Features & Benefits

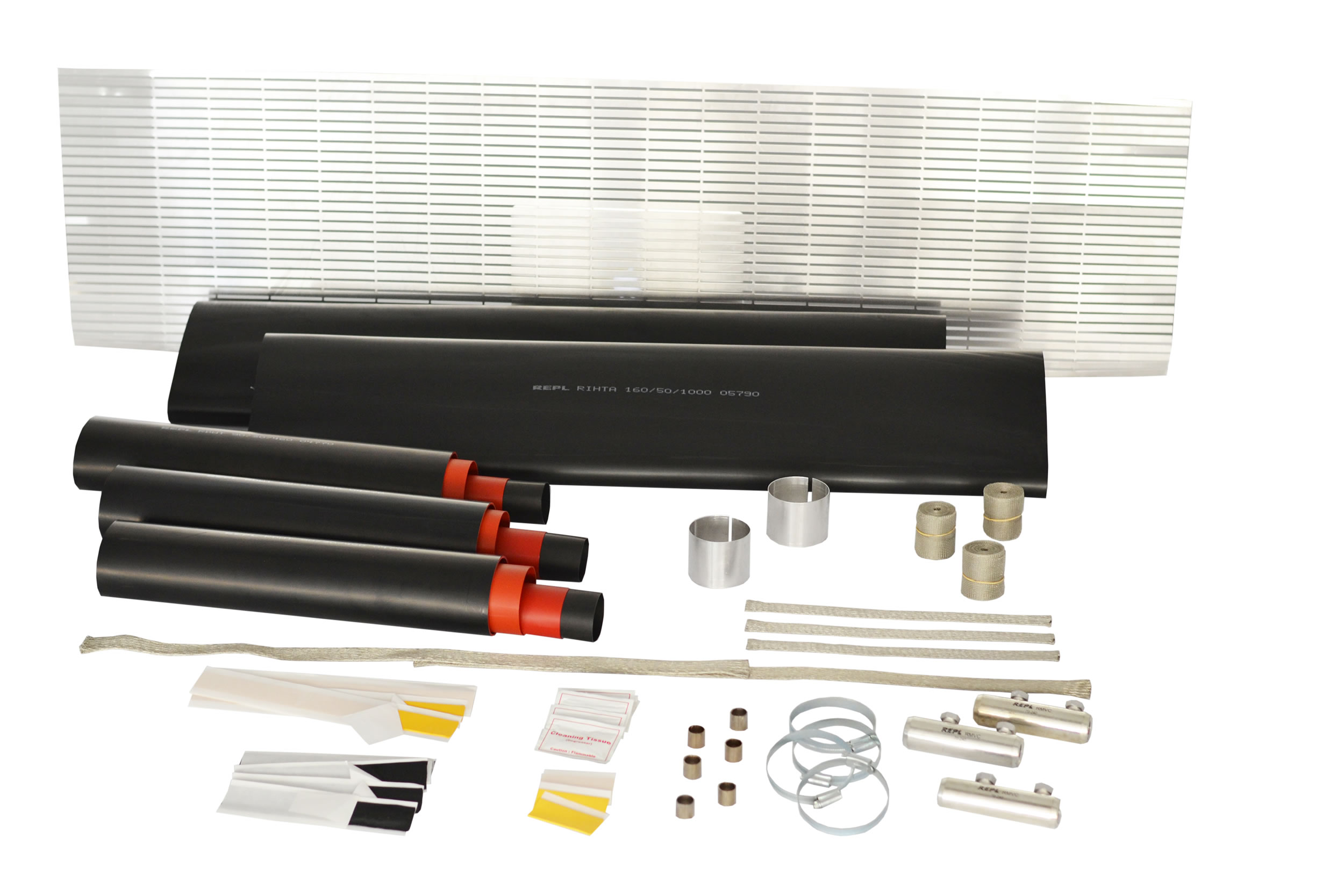

The straight joint comprises of stress control tube, insulating tube, stress grading mastic, sealing mastic, armour cage, conductive breakout, heat shrink outer protection and full jointing instruction
Suitable for XLPE CTS SWA cables
Small range covers wide cable cross sections
Unlimited shelf life
Certified and Tested to CENELEC HD 629.1.S2, IEC 60502-4 and IEEE-48

33kv three core cable joints

33kV Three Core Heat shrink Cable Joints – CTS/SWA/XLPE

A range of three core heat shrink straight joints designed to connect 33kv XLPE insulated cables compatible with both compression and mechanical connector types.

Part No	Cable Cross Section	Dia over insulation
RHSJA 36X 50-95-3	50-95mm2	24-27.8mm
RHSJA 36X 95-185-3	95-185mm2	27.8-32.3mm
RHSJA 36X 185-300-3	185-300mm2	32.3-36.8mm
RHSJA 36X 300-400-3	300-400mm2	36.8-46.8mm
