33kV Transition Heat shrink Cable Joint – 3C/CTS/SWA/XLPE

Features & Benefits

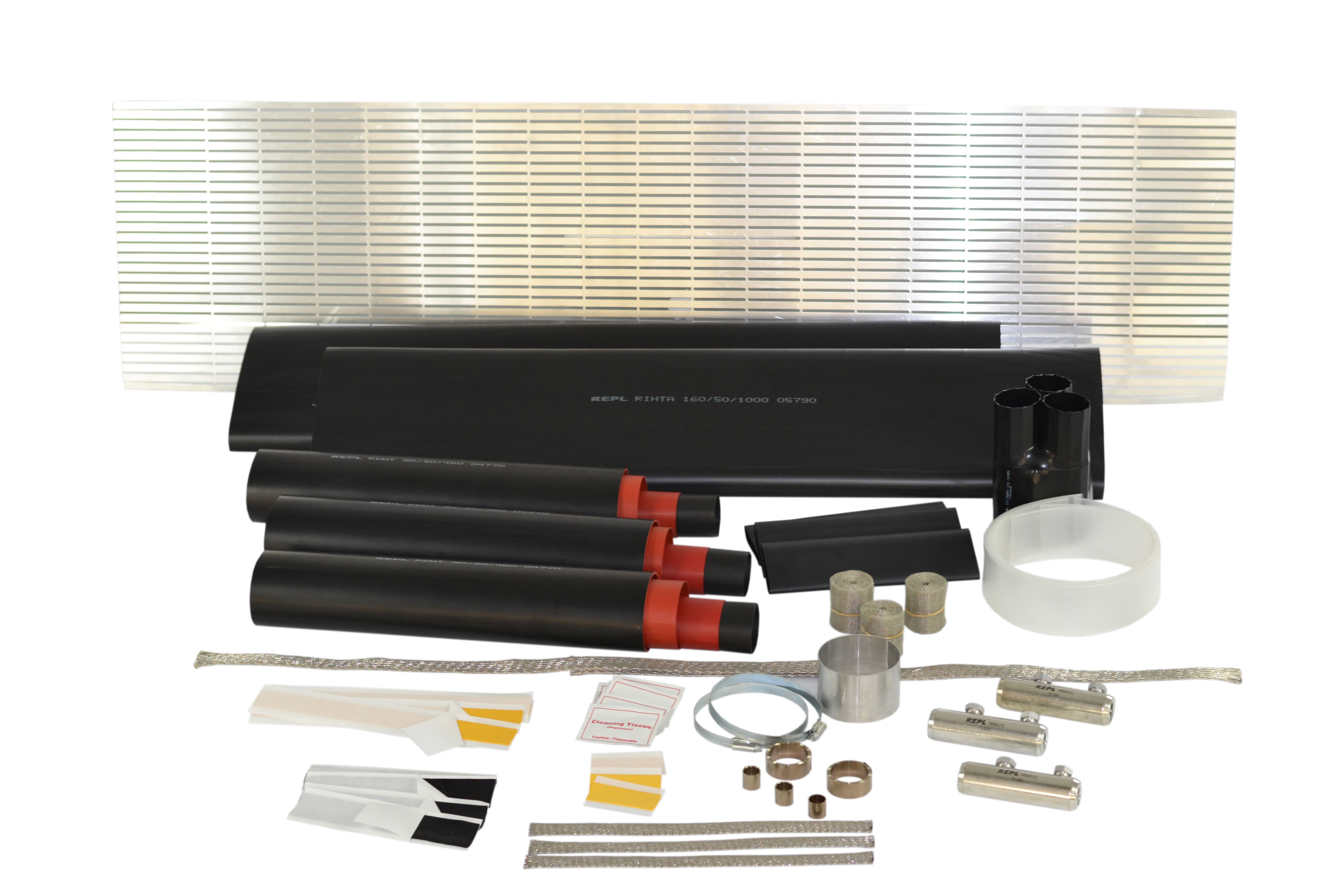

The straight joint comprises of stress control tube, insulating tube, stress grading mastic, sealing mastic, Armour earthing, Oil barrier tube, Conductive tube, conductive breakout, heat shrink outer protection and full jointing instruction
Suitable for transition between XLPE and PILC cables
Small range covers wide cable cross sections
Unlimited shelf life
Certified and Tested to CENELEC HD 629.1., IEC 60502-4 and IEEE-48

33kv transition cable joints

33kV Transition Heat shrink Cable Joint – 3C/CTS/SWA/XLPE – 3C/CTS/LS/PILC

A range of heat shrink three core transition joints to connect three core XLPE SWA cable to three core PILC, Lead Sheath cables. All suitable for the use with compression or mechanical connectors.

Part No	Cable Cross Section	Dia over insulation
RHSJA 36PX 50-95-3	50-95mm2	24-27.8mm
RHSJA 36PX 95-185-3	95-185mm2	27.8-32.3mm
RHSJA 36PX 185-300-3	185-300mm2	32.3-36.8mm
RHSJA 36PX 300-400-3	300-400mm2	36.8-46.8mm
