11kV Indoor Single Core Coldshrink Termination-XLPE

Features & Benefits

The termination comprises of a silicone coldshrink tube that is naturally self cleaning and UV resistant with removable inner core
Suitable for both copper wire and copper tape screen polymeric cables
Fast installation without the need for special tools
Can be used on the individual cores of 11kV triplex
Certified and Tested to CENELEC HD 629.1. S2

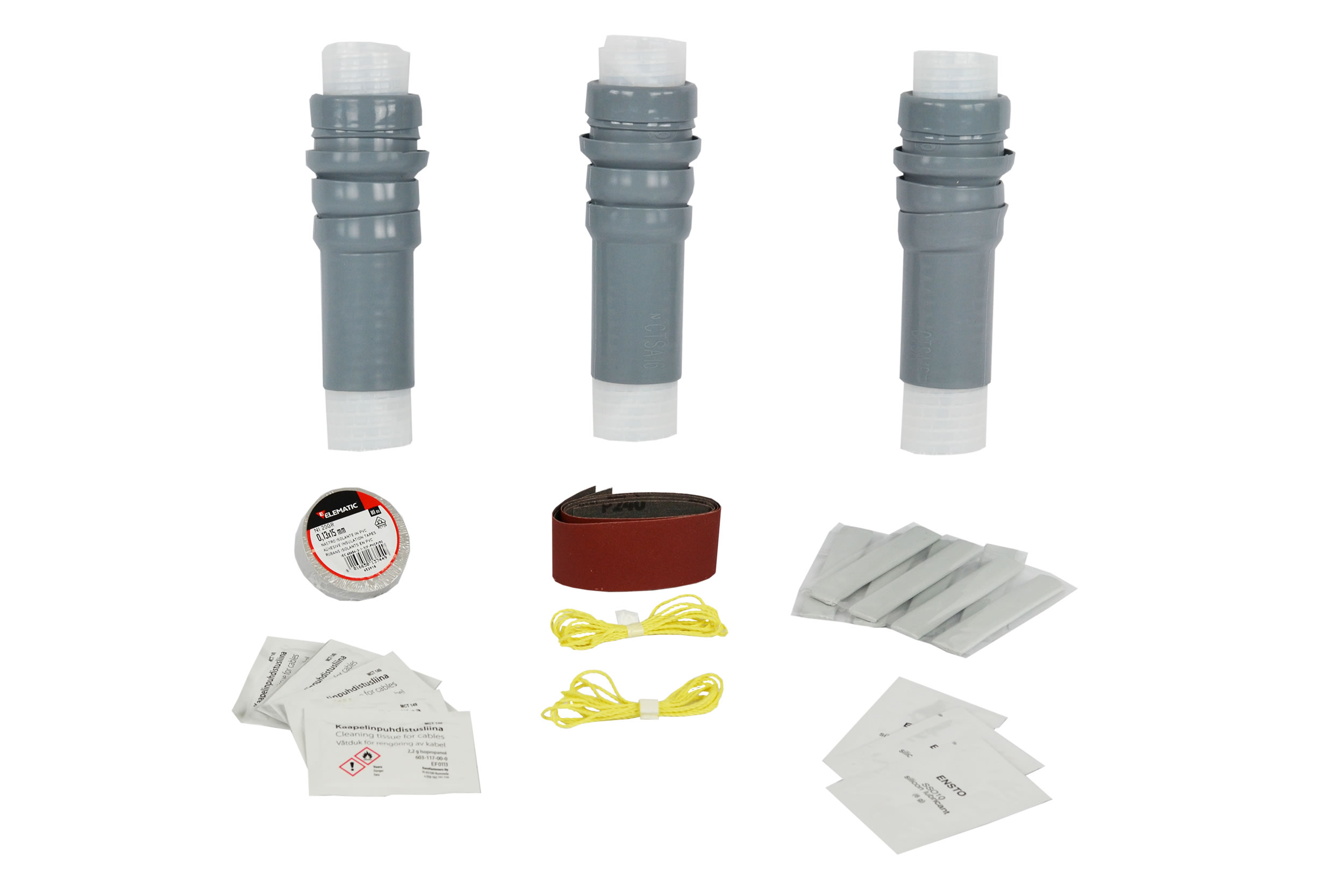

Kit Contents include coldshrink outer insulation tube with integral stress control, sealing tapes and mastics, cable preparation materials and installation instructions
Can be used with compression or mechanical lugs which are available on request
Please ask the SALES OFFICE for insulating bushing boots, earthing kits and glands to complete the installation in the switchgear cable end boxes

11kv indoor terminations

11kV Indoor Single Core Coldshrink Termination-XLPE

A range of high quality single core coldshrink indoor terminations designed to terminate 11kV polymeric cables onto switchgear and cable end boxes in substations.

Part No	Cable Cross Section mm	Min Cable Insulation mm	Length mm
CITI.2402	35-95	13.8	305
CITI.2403	95-240	18.4	310
CITI.2404	240-300	25.3	350
CITI.2405	400-630	31.1	410
CITI.2406	630-1000	36.8	410
