11kV Indoor Single Core Heatshrink Termination-PILC/PICAS

Features & Benefits

The termination comprises of a heatshrinkable tubes with excellent electrical, anti tracking and weathering characteristics, and an internal coating which provides exceptional electrical stress control and void filling properties
Suitable for paper insulated lead cable (PILC)
Small range covers wide cable cross sections
Unlimited shelf life
Certified and Tested to CENELEC HD 629.1.S2

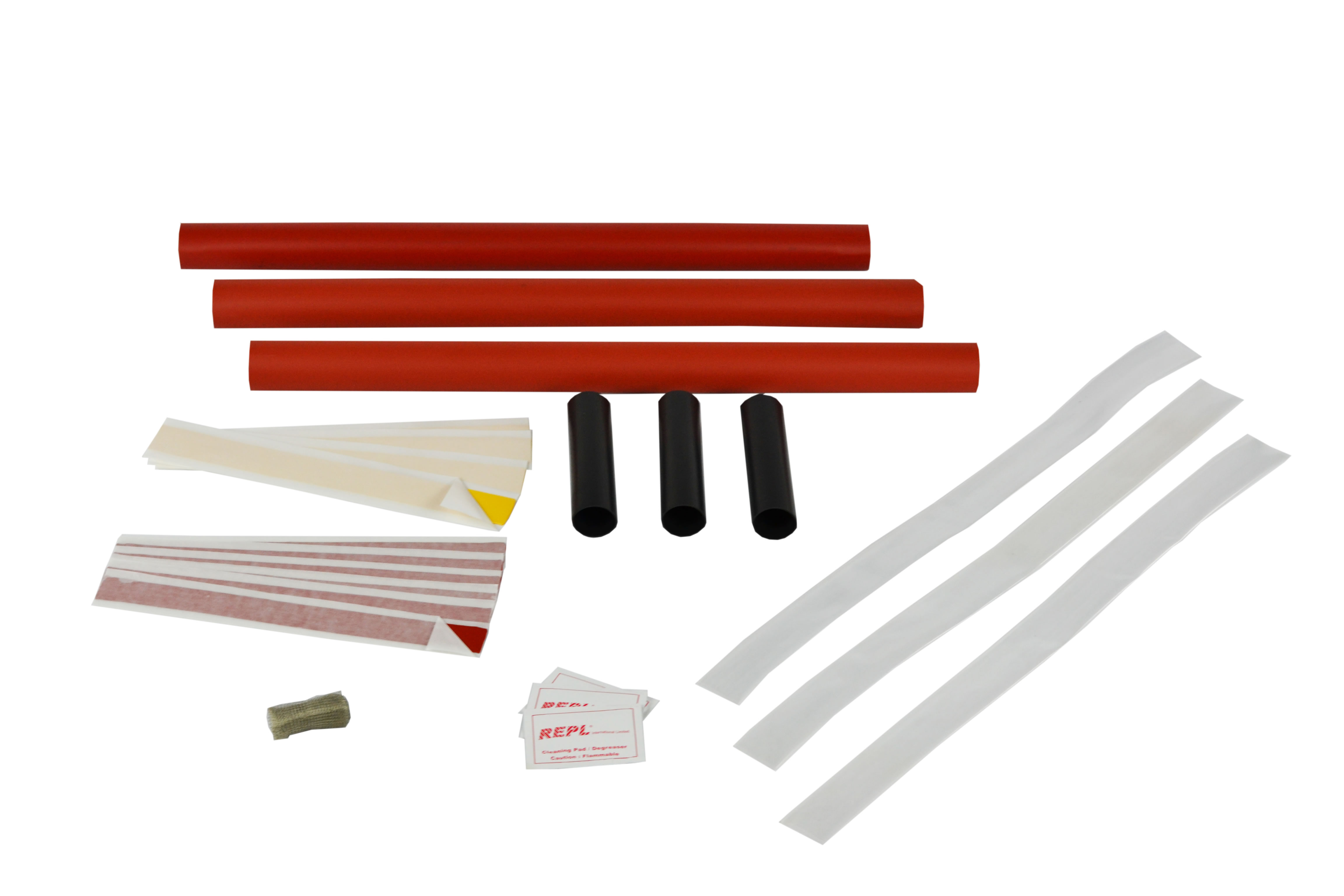

Kit Contents include Heatshrink anti tracking insulation tube, stress control tubes, cable breakout, red sealing mastic, yellow stress grading mastic, cable preparation materials and installation instructions
Can be used with compression or mechanical lugs which are available on request
Please ask the SALES OFFICE for insulating boots, earthing kits and glands to complete the installation in the switchgear cable end boxes

11kv indoor terminations

11kV Indoor Single Core Heatshrink Termination-PILC/PICAS

A range of single core heatshrink indoor terminations designed to terminate 11kV PILC/PICAS cables onto switchgear and cable end boxes in substations.

Part No	Cable Cross Section mm	Length mm
RHTI-12P-25-70-1	25-70	600
RHTI-12P-95-185-1	95-185	600
RHTI-12P-185-300-1	185-300	600
RHTI-12P-400-630-1	400-630	600
RHTI-12P-630-1000-1	185-300	600
