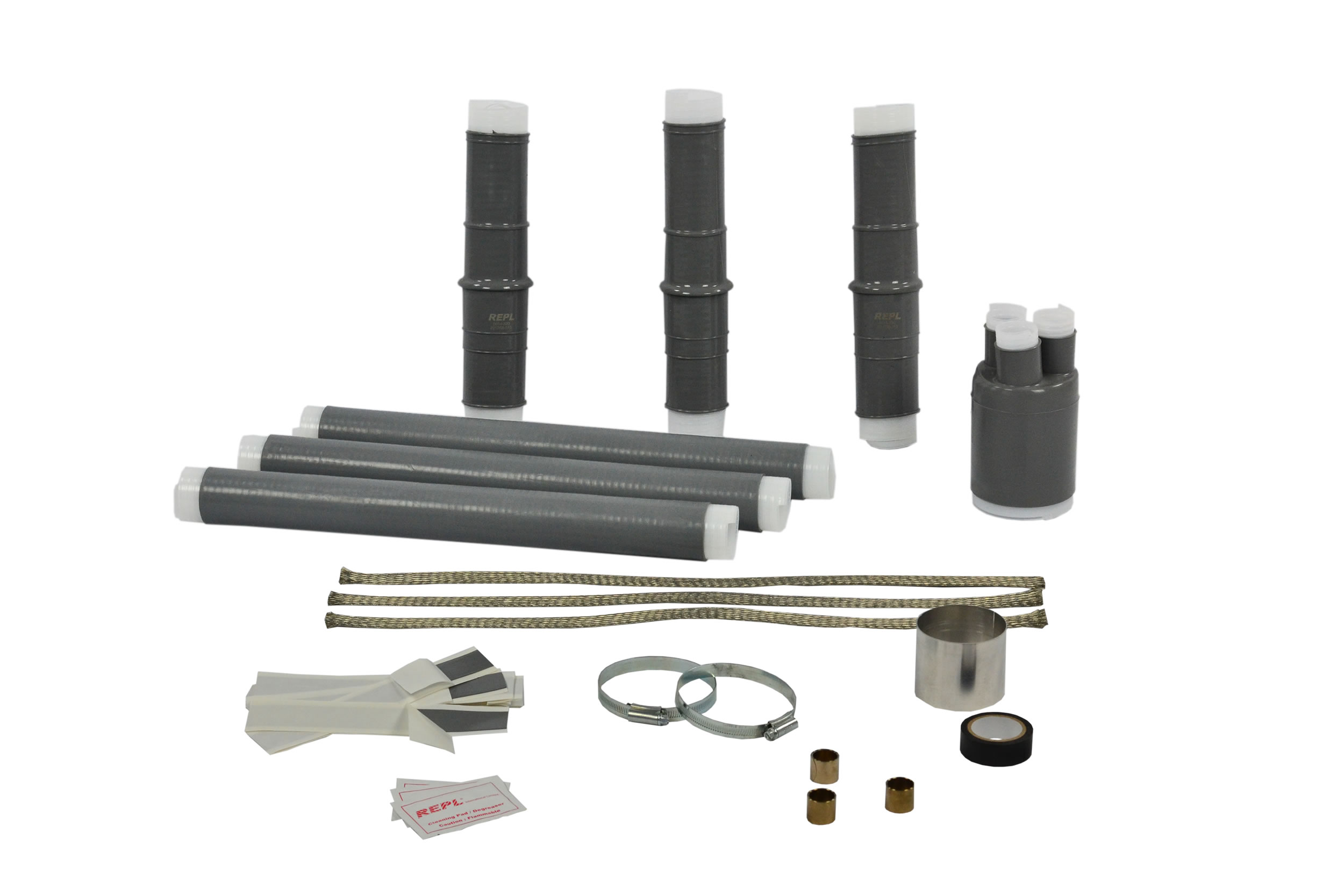

11kV Indoor Three Core Coldshrink Termination-XLPE

Features & Benefits

The termination comprises of a silicone coldshrink tubes that is naturally self cleaning and UV resistant with removable inner core
Suitable for both copper wire and copper tape screen polymeric cables
Small range covers wide cable cross sections
Unlimited shelf life
Certified and Tested to CENELEC HD 629.1.S2
Can be used with compression or mechanical lugs which are available on request
Please ask the SALES OFFICE for insulating boots, earthing kits and glands to complete the installation in the switchgear cable end boxes

11kv indoor terminations

A range of three core coldshrink indoor terminations designed to terminate 11kV polymeric cables onto applications such as pole top assemblies.

Part No	Cable Cross Section mm	Min Cable Insulation mm	Length mm
RCSTI-12x-50-95-3	50-95	15	500-1100
RCSTI-12x-95-300-3	95-300	20	500-1100
RCSTI-12x-400-630-3	400-630	27.5	500-1100
