11kV Indoor Three Core Heatshrink Termination-XLPE

Features & Benefits

The termination comprises of a heatshrinkable tubes with excellent electrical, anti tracking and weathering characteristics, and an internal coating which provides exceptional electrical stress control and void filling properties
Suitable for both copper wire and copper tape screen polymeric cables
Small range covers wide cable cross sections
Unlimited shelf life
Certified and Tested to CENELEC HD 629.1.S2

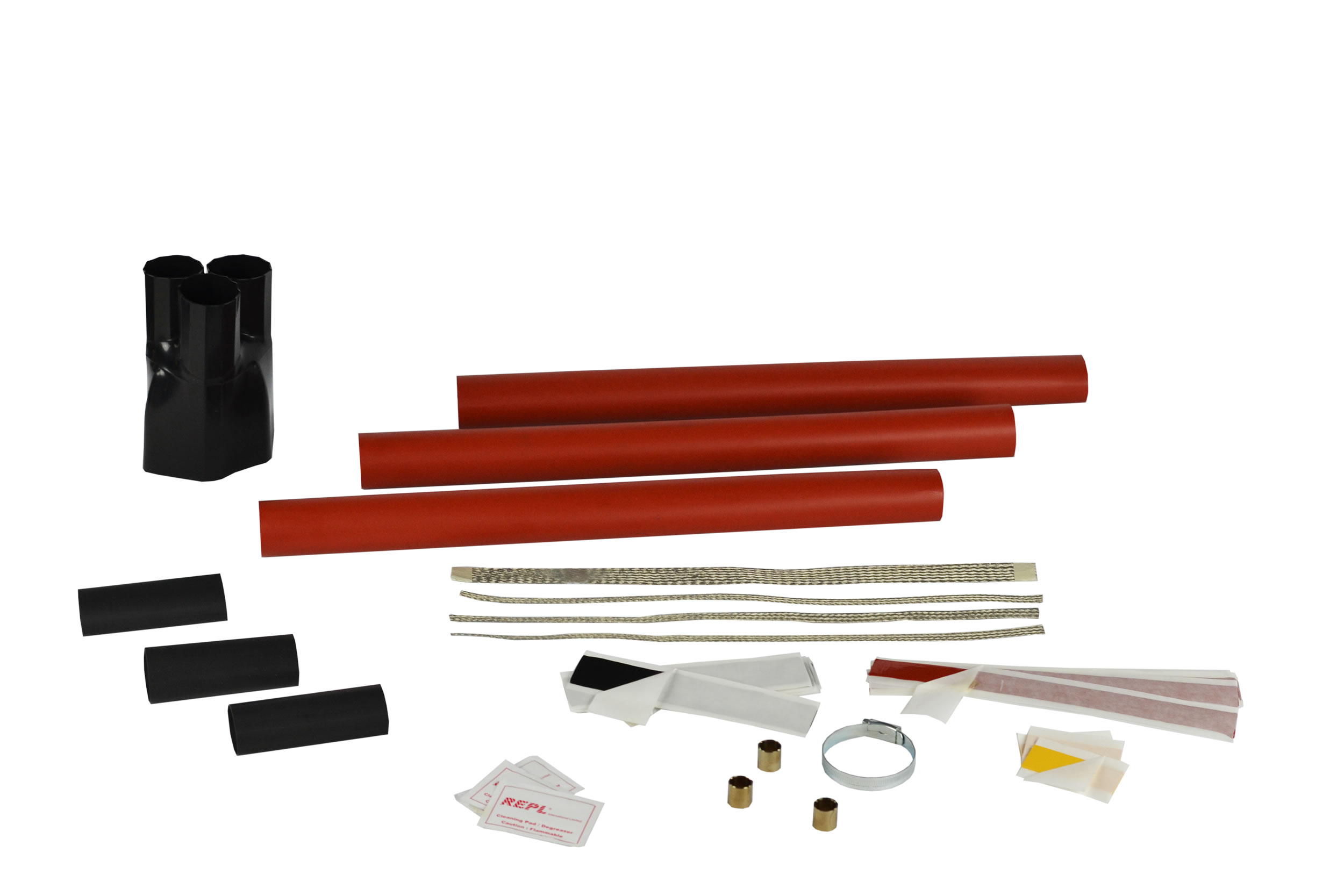

Kit Contents include Heatshrink anti tracking insulation tube, creepage extension sheds, stress control tubes, cable breakout, red sealing mastic, yellow stress grading mastic, cable preparation materials and installation instructions
Can be used with compression or mechanical lugs which are available on request
Please ask the SALES OFFICE for insulating boots, earthing kits and glands to complete the installation in the switchgear cable end boxes

11kv indoor terminations

A range of three core heatshrink indoor terminations designed to terminate 11kV polymeric cables onto switchgear and cable end boxes in substations.
