33kV Indoor Single Core Coldshrink Termination-XLPE

Features & Benefits

The termination comprises of a silicone coldshrink tube that is naturally self cleaning and UV resistant with removable inner core
Suitable for both copper wire and copper tape screen polymeric cables
Fast installation without the need for special tools
Can be used on the individual cores of an 33kV triplex cable
Spiral technology which covers a wide range of cable cross sections
Certified and Tested to CENELEC HD 629.1. S2

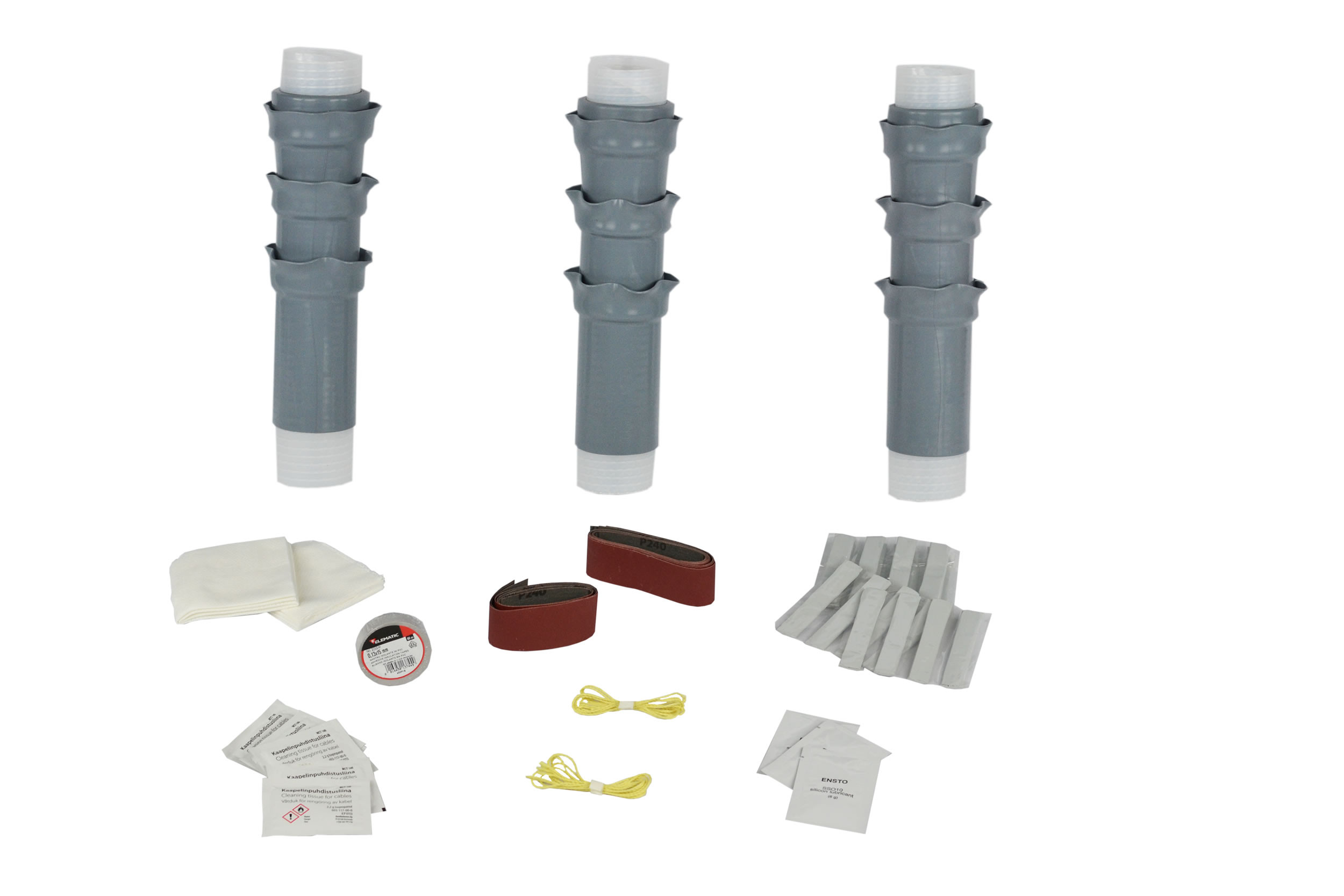

Kit Contents include coldshrink outer insulation tube with integral stress control, sealing tapes and mastics, cable preparation materials and installation instructions
Can be used with compression or mechanical lugs which are available on request
Please ask the SALES OFFICE for insulating bushing boots, earthing kits and glands to complete the installation in the switchgear cable end boxes

33kv indoor terminations

33kV Indoor Single Core Coldshrink Termination-XLPE

A range of high quality single core coldshrink indoor terminations designed to terminate 33kV polymeric cables onto switchgear and cable end boxes in substations.

Part No	Cable Cross Section mm	Min Cable Insulation mm	Length mm
CITI.4202	10-95	18.4	390
CITI.4203	70-240	25.3	430
CITI.4204	185-300	31.1	490
CITI.4205	400-630	31.1	490
CITI.4206	630-1000	36.8	490
