33kV Indoor Three Core Coldshrink Termination-XLPE

Features & Benefits

The termination comprises of a silicone coldshrink tubes that is naturally self cleaning and UV resistant with removeable inner core
Suitable for both copper wire screen and copper tape screen polymeric cables
Small range covers wide cable cross sections
Certified and test to CENELEC HD 629.1.S2

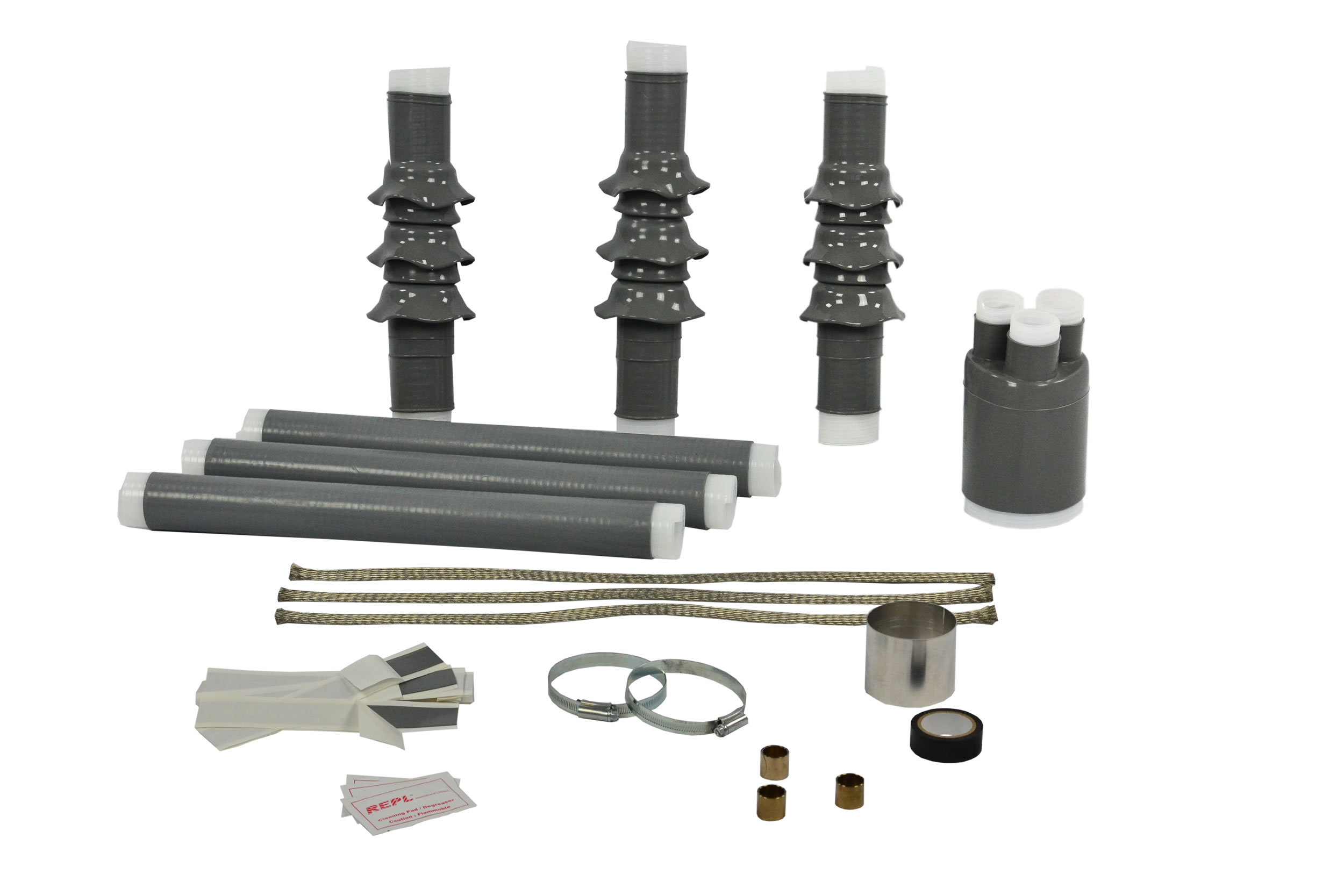

Kit contents include : Coldshrink anti tracking insulation tube, creepage extension sheds, stress control tubes, cable breakout, red sealing mastic, yellow stress grading mastic, cable preparation materials and installation instructions
Can be used with compression or mechanical lugs which are available on request
Please ask the SALES OFFICE for insulating boots, earthing kits and glands to complete the installation in the switchgear cable end boxes

33kv indoor terminations

A range of three core coldshrink indoor terminations designed to terminate 33kV polymeric cables onto switchgear and cable end boxes in substations.

Part No	Cable Cross Section mm	Insulation Dia mm	Tail Length mm
RCSTI-36X-50-120-3	50-120	19-32	600
RCSTI-36X-150-400-3	150-400	30-42	600
RCSTI-36X-500-630-3	500-630	40-60	600
