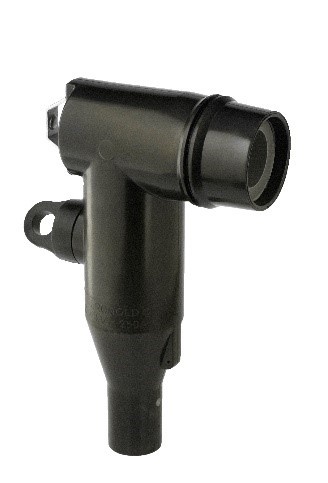

11/24kV Dead-Break Elbow Connector (158LR)

Features & Benefits

The separable connector comprises of connector housing, cable reducer, bail restraint, contact pin and conductor contact
Designed to connect cables to transformers/switchgear and motors
Suitable for both copper wire and copper tape screen polymeric cables
Small range covers wide cable cross sections
Unlimited shelf life
Supplied as a three-phase kit
Also available in a straight connector, Contact the sales office for further detail
Certified and Tested to CENELEC HD 629.1
Can be used with compression or mechanical lugs

11-24kv screened separable connector - type a interface

11/24kV Dead-Break Elbow Connector (158LR)

A range of separable elbow connectors to connect all XLPE type cables to a 200 Series/Type A (250amp) bushing with a 7.9mm plug in pin. Standard kits are designed for 1c copper wire screen cables but with the addition of copper tape screen earth kit can also be used on 3 core and single core armoured cables.

Part No	Voltage	Current	Cable Size Range
158LR/G	11kV	250amp	16-150mm²
K158LR/G	24kV	250amp	16-120mm²
