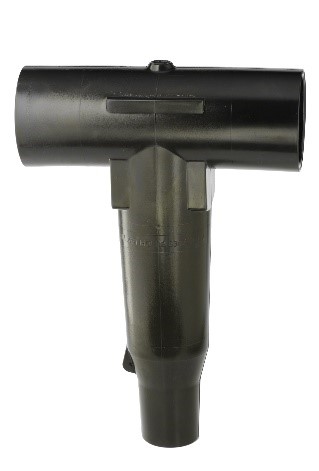

11/24kV Dead-Break Tee Connector (676LR)

Features & Benefits

The separable connector comprises of connector housing, cable reducer, insulating back plug and rubber cap, clamping screw and conductor contact
Designed to connect cables to transformers/switchgear and motors
Suitable for both copper wire and copper tape screen polymeric cables
A thick conductive EPDM jacket provides a total safe to touch screen
Each connector is tested for AC withstand and partial discharge prior to leaving the factor

11-24kv screened separable connector - type d interface

11/24kV Dead-Break Tee Connector (676LR)

A range of separable Tee connectors to connect all XLPE type cables to a 600 Series/Type D (1250amp) bushing with a 5/8” mm threaded stud. Multiple cables per phase are possible when useing coupling connectors.

Part No	Voltage	Current	Cable Size Range
676LR/G	11kV	1250amp	50-630mm²
K676LR/G	24kV	1250amp	35-630mm²
