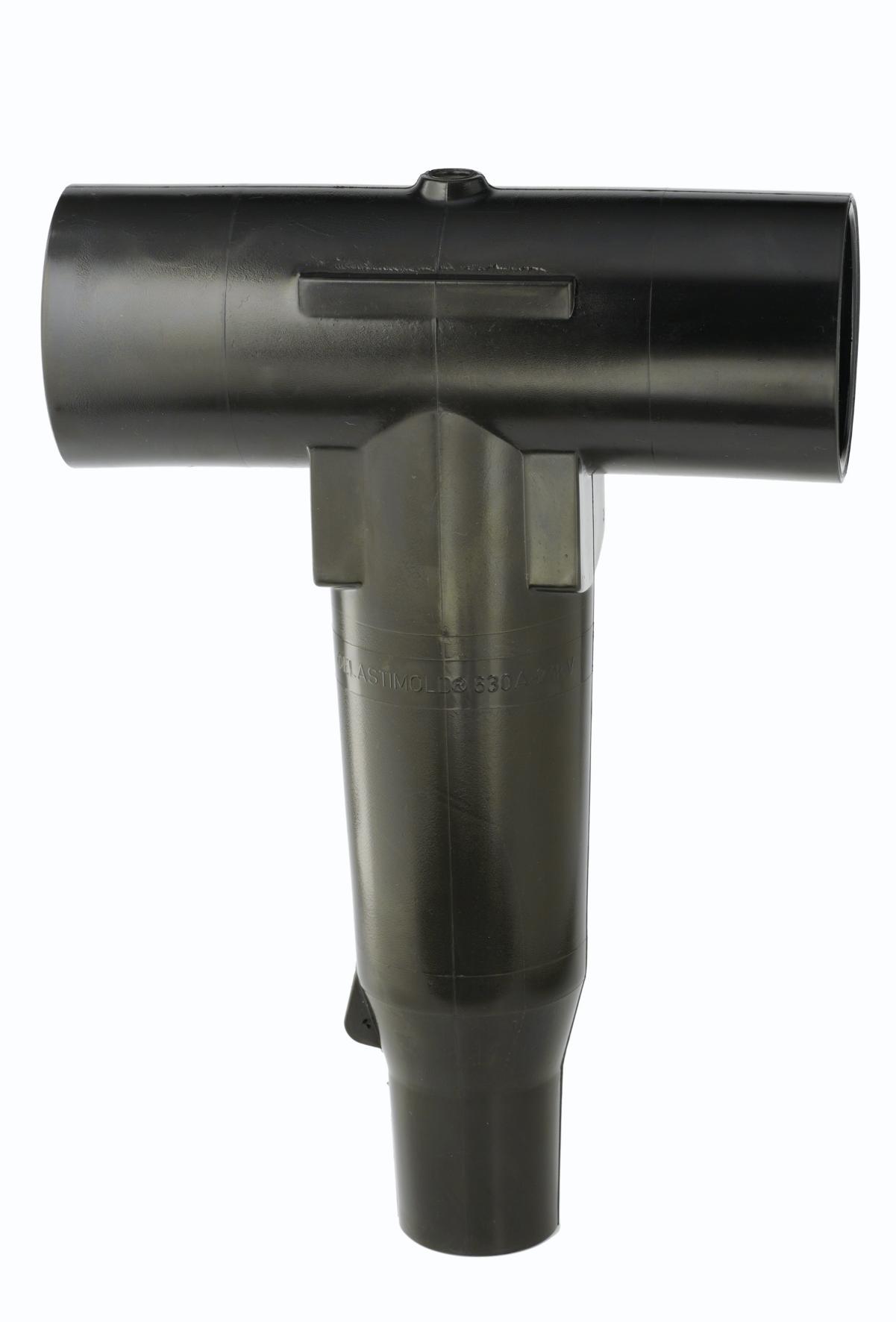

11/36kV Dead-Break Tee Connector (400TE)

Features & Benefits

The separable connector comprises of connector housing, cable reducer, bail restraint, contact pin and conductor contact
Designed to connect cables to transformers/switchgear and motors
Suitable for both copper wire and copper tape screen polymeric cables
Certified and Tested to CENELEC HD 629

11-36kv screened separable connectors - type b interface

11/36kV Dead-Break Tee Connector (400TE)

A range of separable Tee connectors to connect all XLPE type cables to a 400 Series/Type B (400amp) bushing with a 14mm plug in pin. Standard kits are designed for 1c copper wire screen cables but with the addition of copper tape screen earth kit can also be used on 3core and single core armoured cables.

Part No	Voltage	Current	Cable Size Range
400TE/G	11KV	400amp	50-240mm2
K400TE/G	24KV	400amp	25-240mm2
M400TE/G	36KV	400amp	35-185mm2
