Features & Benefits

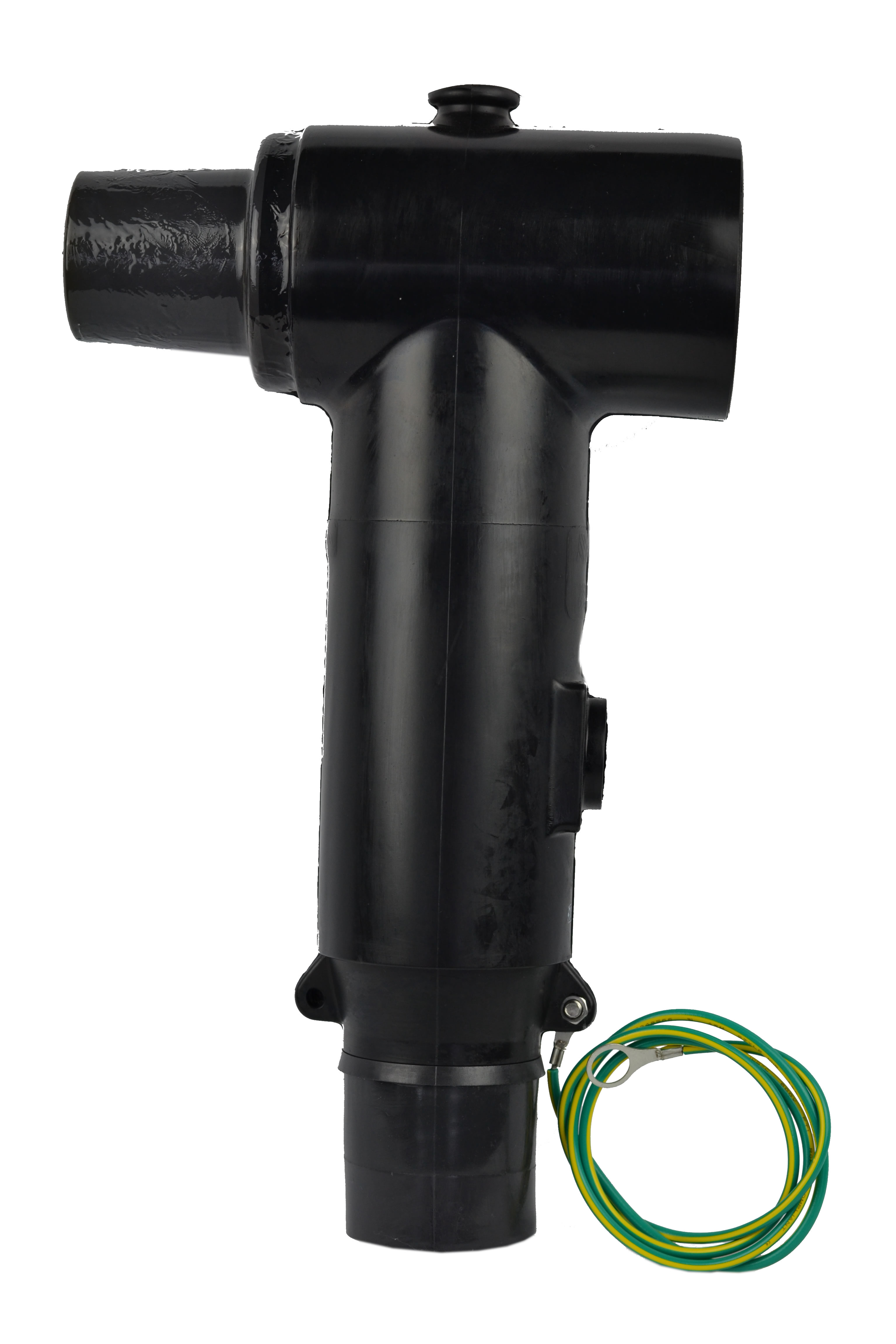

• A thick conductive EPDM jacket provides a total safe to touch screen
• Compact design – asymmetrical body allows minimum depth of connection which is critical when multiple connection are made onto the same bushing
• Continuous current 630A (900A overload for 8 hours)
• Mounting can be vertical, horizontal or any angle in between
• Conforms to HD629.1 S2 and IEC60502-4
• The branch separable connector kit comprises at set of 3 EPDM moulded bodies, set of 3 insulation adaptors, set of 3 mechanical lugs, M16 extension rod, mastic & EPR tapes Cable sealing and environmental available as tapes, heatshrink or coldshrink tubes
• Please contact PSG for us with 3 core cables or cables with copper tape screens as additional trifurcating modules or earthing kits may be required
