Features & Benefits

  • The separable connector comprises of connector housing, cable reducer, insulating back plug and rubber cap, clamping screw and conductor contact
  • Designed to connect cables to transformers/switchgear and motors
  • Suitable for both copper wire and copper tape screen polymeric cables
  • A thick conductive EPDM jacket provides a total safe to touch screen
  • Each connector is tested for AC withstand and partial discharge prior to leaving the factory
  • Certified and Tested to CENELEC HD 629

11-42kv screened separable connector - type e interface

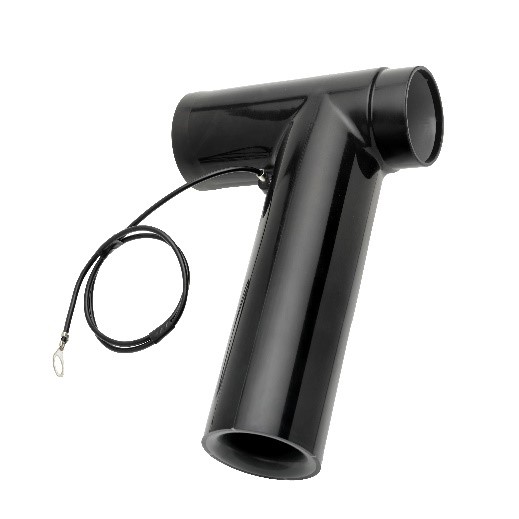

11/42kV Dead-Break Compact Tee Connector (784TB)

A range of separable Tee connectors to connect all XLPE type cables to a 700 Series/Type E (800amp) bushing with a 5/8” mm threaded stud. Standard kits are designed for 1c copper wire screen cables but with the addition of copper tape screen earth kit can also be used on 3core and single core armoured cables. This compact tee connector replaces the 775LR connector range and are supplied in sets of 3.


Part NoVoltageCurrentCable Size Range
784TB/G11kv800amp50-630mm2
K784TB/G24kV800amp35-630mm2
M784TB/G36kV800amp35-630mm2
P784TB/G42kV800amp35-630mm2
