Home / Products / Separable Connectors / Bushing Diagrams / Type A Interface Bushing

Features

Voltage Range 12-24kv
Connection Point is a 7.9mm Plug In Pin Contact
Current rating is 250amp
Dimensions according to European CENELEC EN 50180 and 50181

Separable Connectors

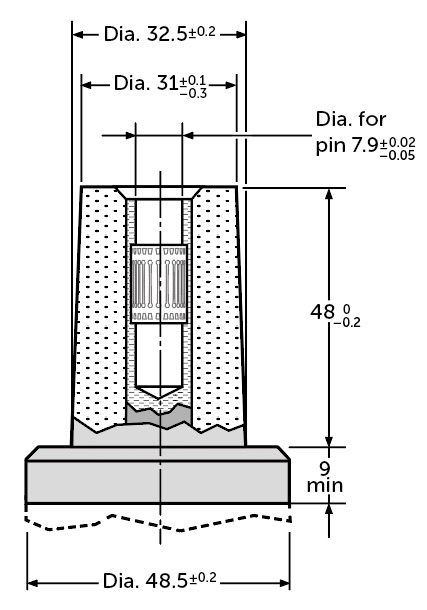

Type A Interface Bushing
