Features

Voltage Range 12-36kV
Connection Point is a 5⁄8” UNC Bolted Stud (800amp ALI/1250amp Cu)
Current Rating is 800-1250amp

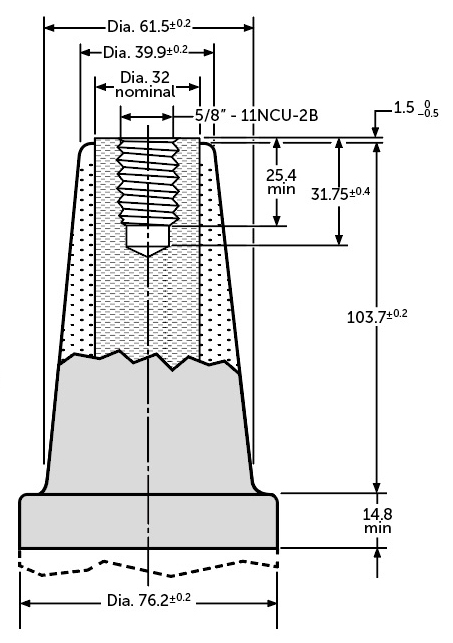

Dimensions according to European CENELEC EN 50180 and 50181
