11/36kV Screened Connex Separable Connectors

Features & Benefits

The standard separable connector is designed for 1c copper wire screen cables but can be used on copper tape screen armoured cables with the addition of further accessories
Bushing sizes 0-3S covers a current rating of 250amp to 1250amp (under the 1st feature listed below)
Heatshrinkable sleeve provides a moisture barrier between the cable sheath and the alloy housing of the connector
The termination is completed by plugging into the equipment and taking the cable screen to earth
Designed to connect cables to transformers/switchgear and motor
Sold in sets of 3
Tested to Cenelec EN 50180, 50181
Specialist installations tools needed, please contact the sales office for further details

11-36kv separable connectors - inner cone interface

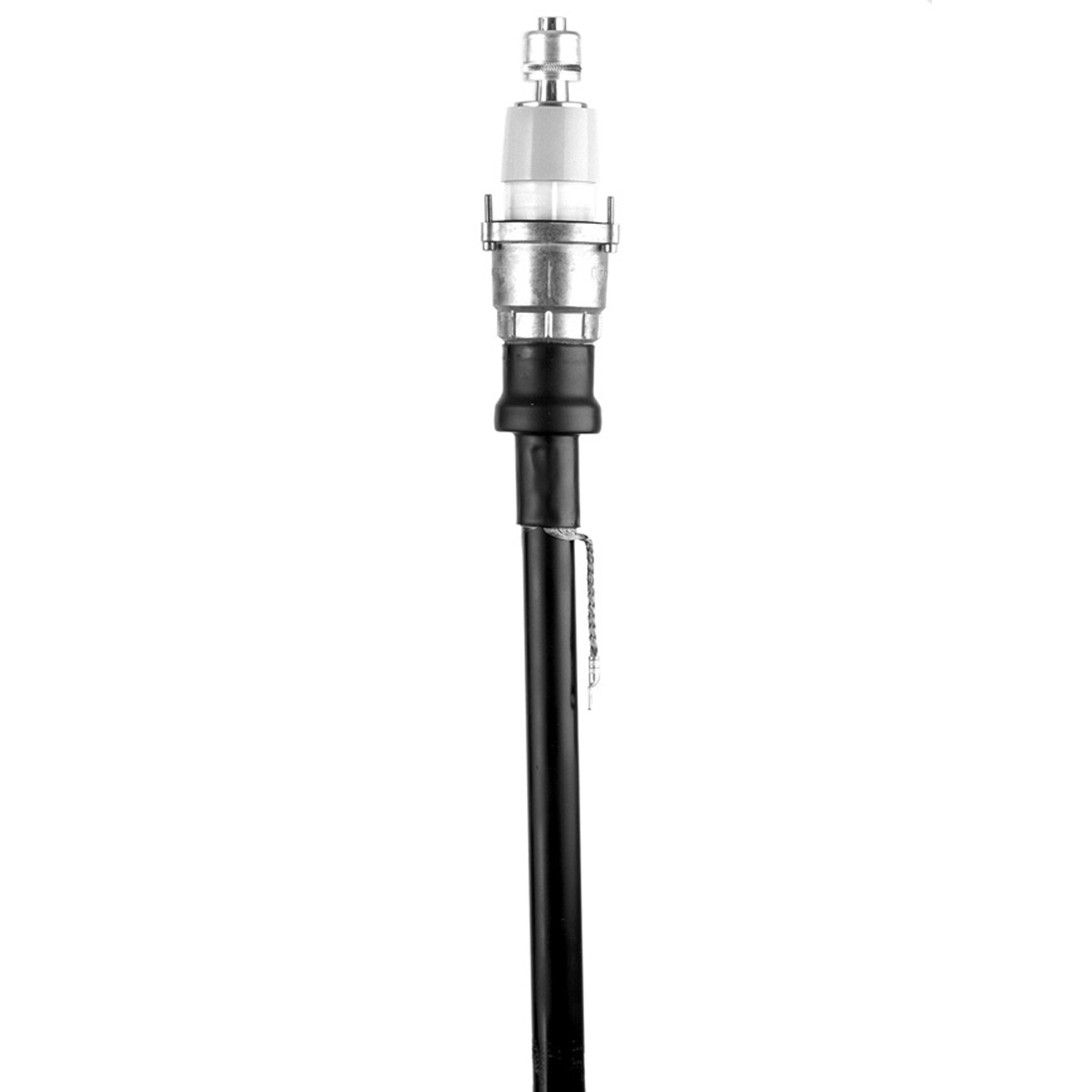

11/36kV Screened Connex Separable Connectors

A range of inner cone separable connectors designed for connecting screened polymeric cables to the inner cone Connex bushing. The Connex range is designed for the use in ring main units, Switchgear, and circuit breakers. Busing sizes 0-3s cover a current rating of 250amp trough to 1250amp.

Part No	Size	Voltage	Cable Size	Current
870-01X-XXX	0	11kV	25-70mm²	250amp
870-02X-XXX	0	24kV	25-70mm²	250amp
870-11X-XXX	1	11kV	25-240mm	630amp
870-12X-XXX	1	24kV	25-240mm²	630amp
870-13X-XXX	1	36kV	25-240mm²	630amp
870-21X-XXX	2	11kV	25-400mm²	630amp
870-22X-XXX	2	24kV	25-400mm²	800amp
870-23X-XXX	2	36kV	25-400mm²	800amp
870-31X-XXX	3	11kV	35-800mm²	1250amp
870-32X-XXX	3	24kV	35-800mm²	1250amp
870-33X-XXX	3	36kV	35-800mm²	1250amp
870-335-XXX	3XL	36kV	35-800mm²	1250amp
