US02 Adjustable Bonded Semi-Con Removal Tool

Features & Benefits

Compact design removes semi-con within 33mm of the jacket on mid span
Precision blade depth adjusts in increments of 0.1mm
Stop position squares off the edge
Factory set blade is easily replaced
Suitable for cable screen diameter of between 18-60mm
A revolving ergonomic handle & accessible adjustment knobs reduce effort & potential strain

Cable preparation tooling

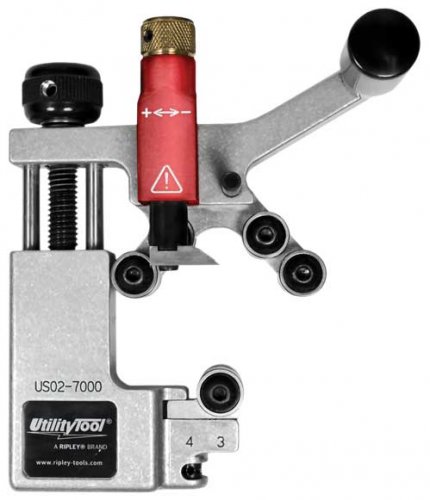

US02 Adjustable Bonded Semi-Con Removal Tool

The US02 quickly and easily removes bonded semi-con from cables up to 36kV. Its Unique blade shape preserves the smooth surface on insulation, eliminating the need for additional surface finishing. Its optimal stability design securely supports cables with diameter from 18-60mm.

Part No	Size Range O/D
US02-7000	18-60mm
